Natural Language Processing

Text → tokens → vectors

Natural language processing (NLP) is a subfield of artificial intelligence that allows computers to understand, process, and manipulate human language.

Every tool in this course so far needs a vector: \(k\)-means (Lecture 3), \(k\)-nearest neighbours (Lecture 9), regression, SVD and PCA (Lectures 10–13). Text is not a vector. Today is about how text becomes one: text → tokens → vectors.

Learning outcomes

After this lecture you should be able to:

  1. tokenize and normalize text, build a vocabulary and a bag-of-words count matrix;
  2. compute TF, IDF and TF-IDF from the formulas, and say how scikit-learn’s version differs;
  3. compute cosine similarity between documents and use it to retrieve the nearest one;
  4. explain why sparse vectors cannot see synonyms, what an embedding does differently, and how attention makes an embedding depend on its context.

Brief History of NLP and Lecture Outline

NLP Evolution Timeline

1950s-1970s: Rule-Based Era

  • Turing Test (1950), formal grammars, hand-crafted rules
  • Systems like ELIZA (1966) - pattern matching “Rogerian therapy” chatbot
  • Limitations: brittle, didn’t scale, couldn’t handle ambiguity

1980s-2000s: Statistical Revolution

  • Shift from rules to learning from data
  • Vector-space retrieval with TF-IDF, N-grams, Hidden Markov Models

2006-2017: Deep Learning

  • Neural networks applied to NLP
  • Word2Vec (2013), RNNs, LSTMs for sequence modeling
  • Attention mechanism (2014) - precursor to Transformers

2017-Present: Transformer Era

  • Attention is All You Need (2017) - Transformer architecture
  • BERT (2018), GPT-2/3 (2019/2020), ChatGPT (2022)
  • GPT-4 (2023), open-weight models (Llama, Mistral), “reasoning” models (2024–)

Lecture Outline

For the rest of this lecture we will cover:

  • Tokenization and preprocessing
  • Sparse representations: bag of words and TF-IDF
  • Cosine similarity and document retrieval
  • Word embeddings, static and contextual

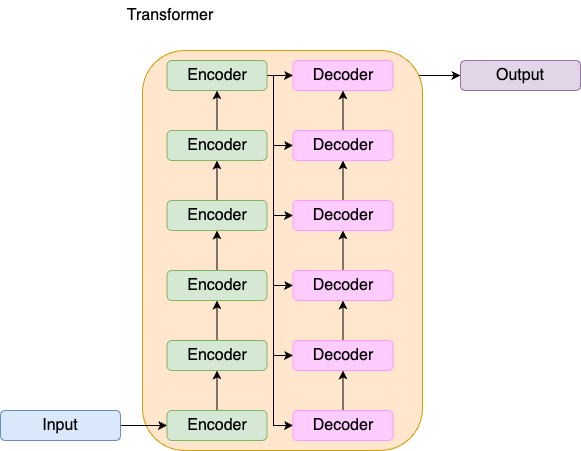

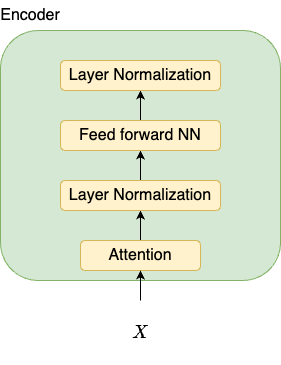

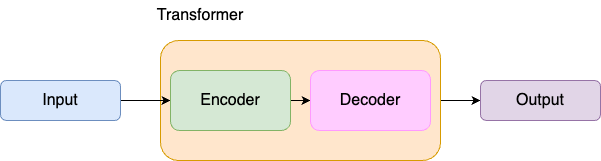

  • Language models and transformers

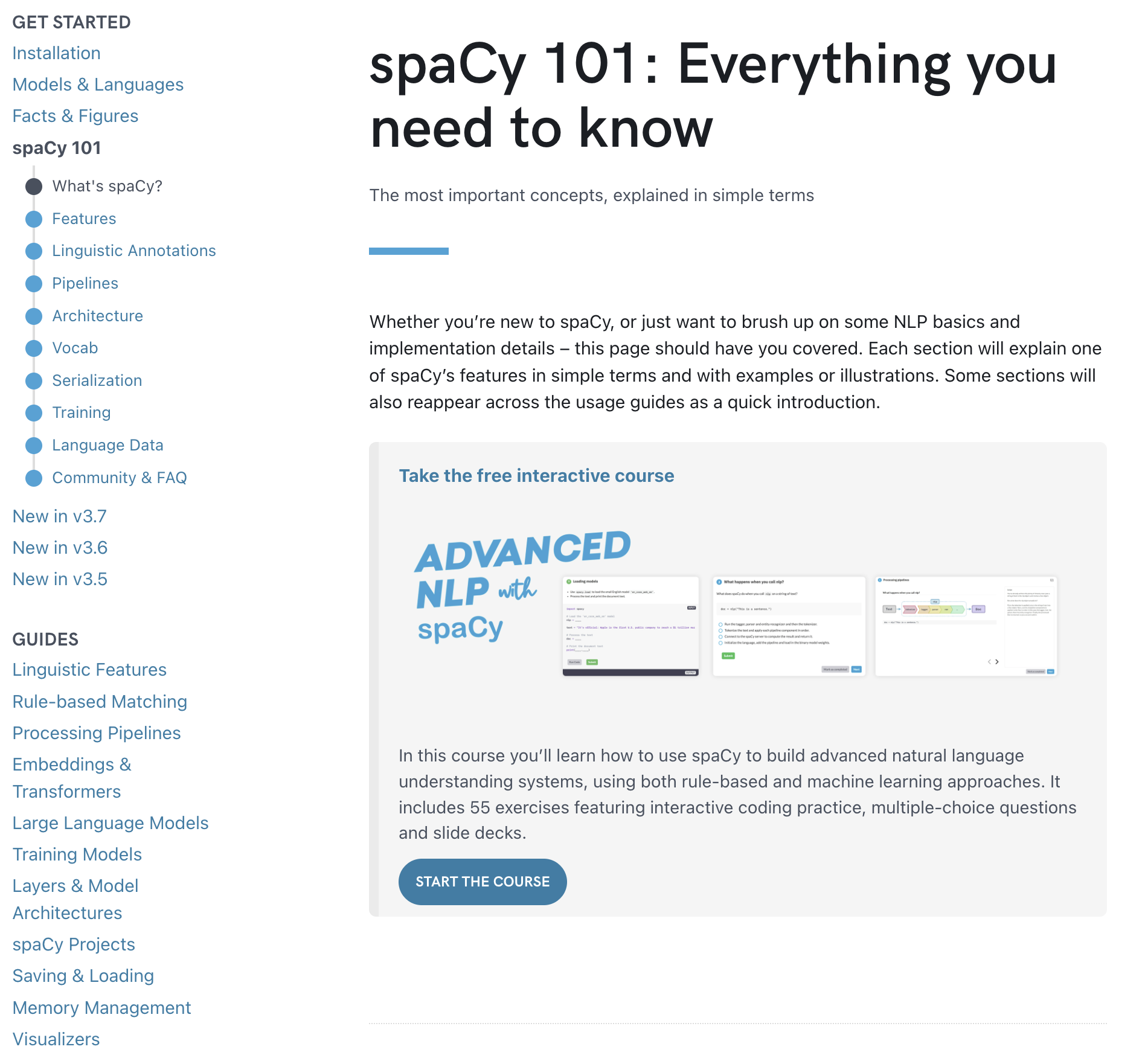

  • NLP packages, named entity recognition and topic modeling (a short tour)

Text to Tokens

Numerical Representations of Words

  • Machine learning models for NLP are not able to process text in the form of characters and strings.
  • Characters and strings must be converted to numbers in order to train our language models.

There are a number of ways to do this. These include

  • sparse representations, like one-hot encodings, bag of words and TF-IDF
  • word embeddings.

However, prior to creating a numerical representation of text, we need to tokenize the text.

Tokenization

  • Tokenization is the process of splitting raw text into smaller pieces, called tokens.

  • Tokens can be individual characters, words, subwords, or sentences.


Examples of character and word tokenization:

Show me the money

Character tokenization:

['S', 'h', 'o', 'w', ' ', 'm', 'e', ' ', 't', 'h', 'e', ' ', 'm', 'o', 'n', 'e', 'y']

Word tokenization:

['Show', 'me', 'the', 'money']

Simple Tokenization in Python

Simple python implementation:

# Character and word tokenization

sentence = "Show me the money"
word_tokens = sentence.split()
print(word_tokens)

character_tokens = list(sentence)
print(character_tokens)
['Show', 'me', 'the', 'money']
['S', 'h', 'o', 'w', ' ', 'm', 'e', ' ', 't', 'h', 'e', ' ', 'm', 'o', 'n', 'e', 'y']

A character tokenizer keeps the spaces: they are what mark the word boundaries.

Tokenization Methods

  • There are advantages and disadvantages to different tokenization methods.
  • We showed two very simple strategies.

However, there are other strategies, such as subword and sentence tokenization, see for example:

See Andrej Karpathy’s Let’s build a GPT tokenizer video for a deep dive.

  • With tokenization, our goal is to not lose meaning with the tokens. With character based tokenization, especially for English (non-character based languages) we certainly lose meaning.

Huggingface Tokenization

Here is a demo of how to tokenize using the transformers package from Huggingface.

from transformers import AutoTokenizer

tokenizer = AutoTokenizer.from_pretrained("google-bert/bert-base-cased")
tokens = tokenizer.tokenize(sentence)
print(tokens)

# Try a more advanced sentence
sentence2 = "Let's try to see if we can get this transformer to tokenize."
tokens2 = tokenizer.tokenize(sentence2)
print(tokens2)
print("vocabulary size:", tokenizer.vocab_size)
['Show', 'me', 'the', 'money']
['Let', "'", 's', 'try', 'to', 'see', 'if', 'we', 'can', 'get', 'this', 'transform', '##er', 'to', 'token', '##ize', '.']
vocabulary size: 28996

## means “continues the previous token”: token + ##ize = tokenize. BERT’s vocabulary has about 29,000 subwords, and any word can be spelled from them, so the model never meets an unknown word.

Tokens, Token IDs, and Vocabulary

  • Associated to each token is a unique token ID.

  • The total number of unique tokens that a model can recognize and process is the vocabulary size.

    • The vocabulary is the collection of all the unique tokens.

  • The tokens (and token ids) alone hold no (semantic) information. What is needed is a numerical representation that encodes this information.

  • There are different ways to achieve this:

    • One encoding technique that we already considered is one-hot encodings.

    • Another more powerful encoding method, is the creation of word embeddings.

tiktokenizer

tiktokenizer

Tiktokenizer demo

Preprocessing is a sequence of decisions

Before counting words you decide what counts as “the same word”. Each decision changes the vocabulary, and so every column of the matrix you build next.

  • Lower-case? “The” and “the” become one token.
  • Strip punctuation? “mat.” and “mat” become one token.
  • Remove stop words? Drop “the”, “on”, “and”, … from a fixed list.
  • Stem or lemmatize? A stemmer chops suffixes by rule (Porter: running → run, easily → easili). A lemmatizer looks the word up in a dictionary (ran → run, studies → study).

Stemming vs lemmatization

from nltk.stem import PorterStemmer, WordNetLemmatizer

stemmer, lemmatizer = PorterStemmer(), WordNetLemmatizer()
print(f"{'word':10} {'stem':10} {'lemma (verb)':12}")
for w in ["running", "runs", "ran", "easily", "studies"]:
    print(f"{w:10} {stemmer.stem(w):10} {lemmatizer.lemmatize(w, pos='v'):12}")
word       stem       lemma (verb)
running    run        run
runs       run        run
ran        ran        run
easily     easili     easily
studies    studi      study
  • The stemmer is fast and needs no dictionary, but its output need not be a word (easili, studi) and it misses irregular forms (ran).
  • The lemmatizer returns real words, but needs to know the part of speech: we told it every word is a verb.
  • Either way, running and runs (and with the lemmatizer ran) collapse into one column.

Sparse Vectors: Counts and TF-IDF

Sparse Representations

You met one-hot encodings for categorical features in Lecture 1.

One-Hot Encoding

  • Each word is represented as a vector of zeros and a single one.
  • Simple but inefficient for large vocabularies.

Example

Given the words cat, dog, and emu here are sample one-hot encodings

\[ \begin{align*} \text{cat} &= [1, 0, 0]^{T}, \\ \text{dog} &= [0, 1, 0]^{T}, \\ \text{emu} &= [0, 0, 1]^{T}. \\ \end{align*} \]

Bag of Words (BoW)

A document becomes the count of each vocabulary word, ignoring grammar and word order. Three sentences, one row each:

import numpy as np
import pandas as pd
from sklearn.feature_extraction.text import CountVectorizer

docs = ["The cat sat on the mat.",
        "The dog sat on the log.",
        "The emu sat on the mat."]

count_vec = CountVectorizer()              # lower-cases, drops punctuation
counts = count_vec.fit_transform(docs).toarray()
vocab = count_vec.get_feature_names_out()
pd.DataFrame(counts, columns=vocab, index=["S1", "S2", "S3"])
cat dog emu log mat on sat the
S1 1 0 0 0 1 1 1 2
S2 0 1 0 1 0 1 1 2
S3 0 0 1 0 1 1 1 2

Every decision changes the columns

for options in [{}, {"lowercase": False}, {"stop_words": "english"}]:
    names = CountVectorizer(**options).fit(docs).get_feature_names_out()
    print(f"{str(options):28} {len(names)} terms: {list(names)}")
{}                           8 terms: ['cat', 'dog', 'emu', 'log', 'mat', 'on', 'sat', 'the']
{'lowercase': False}         9 terms: ['The', 'cat', 'dog', 'emu', 'log', 'mat', 'on', 'sat', 'the']
{'stop_words': 'english'}    6 terms: ['cat', 'dog', 'emu', 'log', 'mat', 'sat']
  • Keep the case and “The” and “the” are two columns.
  • scikit-learn’s English stop-word list removes “the” and “on”, but keeps “sat”.
  • Raw counts are dominated by the, which says nothing about which sentence this is.

TF-IDF (Term Frequency-Inverse Document Frequency)

For a term \(t\), a document \(d\), and a corpus of \(N\) documents:

\[ \mathrm{tf}(t,d) = \#\{\text{occurrences of } t \text{ in } d\}, \qquad \mathrm{df}(t) = \#\{\text{documents containing } t\}, \]

\[ \mathrm{idf}(t) = \ln\frac{N}{\mathrm{df}(t)}, \qquad \text{tf-idf}(t,d) = \mathrm{tf}(t,d)\times\mathrm{idf}(t). \]

  • \(\mathrm{tf}\) rewards a term that is frequent in this document.
  • \(\mathrm{idf}\) rewards a term that is rare across the corpus.
  • A term in every document has \(\mathrm{idf} = \ln(N/N) = 0\): it is removed automatically, without a stop-word list.
  • A term in one document gets the largest weight, \(\ln N\).

TF-IDF by hand on the three sentences

With \(N = 3\):

term df idf \(= \ln(3/\mathrm{df})\)
the, sat, on 3 \(\ln 1 = 0\)
mat 2 \(\ln 1.5 = 0.405\)
cat, dog, emu, log 1 \(\ln 3 = 1.099\)

Sentence 1: the has tf \(= 2\) but weight \(2 \times 0 = 0\). What is left is cat \(= 1.099\) and mat \(= 0.405\). The words that tell the sentences apart now carry the whole vector.

TF-IDF by hand, in code

The same computation, with counts from the bag-of-words slide:

N = len(docs)
df = (counts > 0).sum(axis=0)
idf = np.log(N / df)
tfidf_textbook = counts * idf
pd.DataFrame(tfidf_textbook, columns=vocab, index=["S1", "S2", "S3"]).round(3)
cat dog emu log mat on sat the
S1 1.099 0.000 0.000 0.000 0.405 0.0 0.0 0.0
S2 0.000 1.099 0.000 1.099 0.000 0.0 0.0 0.0
S3 0.000 0.000 1.099 0.000 0.405 0.0 0.0 0.0

the, sat and on are zero in every row; mat is shared by S1 and S3, so it gets the smaller weight 0.405.

What TfidfVectorizer actually computes

scikit-learn does not use the textbook formula. Its defaults are

\[ \mathrm{idf}_{\text{sk}}(t) = \ln\frac{1+N}{1+\mathrm{df}(t)} + 1, \qquad\text{then each row is divided by its } \ell_2 \text{ norm.} \]

from sklearn.feature_extraction.text import TfidfVectorizer

tfidf_vec = TfidfVectorizer()
tfidf_sk = tfidf_vec.fit_transform(docs).toarray()
pd.DataFrame(tfidf_sk, columns=tfidf_vec.get_feature_names_out(),
             index=["S1", "S2", "S3"]).round(4)
cat dog emu log mat on sat the
S1 0.5219 0.0000 0.0000 0.0000 0.3969 0.3082 0.3082 0.6165
S2 0.0000 0.4943 0.0000 0.4943 0.0000 0.2919 0.2919 0.5839
S3 0.0000 0.0000 0.5219 0.0000 0.3969 0.3082 0.3082 0.6165

Why the is the largest entry

  • Smoothing (the \(+1\)s): the gets \(\mathrm{idf}_{\text{sk}} = \ln(4/4) + 1 = 1\), not 0. With tf \(= 2\) it outweighs cat (\(\ln 2 + 1 = 1.69\)). No term is ever weighted exactly 0, and a word that is new at query time cannot cause a division by zero.
  • \(\ell_2\) normalization: every row has length 1, so long and short documents are comparable and cosine similarity becomes a dot product.
  • smooth_idf=False removes the \(+1\)s inside the log but keeps the \(+1\) outside, so it is still not the textbook idf.
  • Practical knobs: stop_words="english", min_df / max_df to prune the vocabulary, sublinear_tf=True for \(1 + \ln \mathrm{tf}\).
  • On thousands of documents the smoothing barely matters. On three it does.

Cosine similarity between documents

\[ \cos{(\theta)} = \frac{v_1 \cdot v_2}{\Vert v_1 \Vert_2 \Vert v_2 \Vert_2}. \]

It measures direction, not length. For counts and TF-IDF (no negative entries) it lies in \([0, 1]\), and 0 means no shared term.

from sklearn.metrics.pairwise import cosine_similarity

for name, X in [("raw counts", counts),
                ("textbook TF-IDF", tfidf_textbook),
                ("sklearn TF-IDF", tfidf_sk)]:
    print(f"cos(S1, S2) on {name:16}: {cosine_similarity(X[[0]], X[[1]])[0, 0]:.2f}")
cos(S1, S2) on raw counts      : 0.75
cos(S1, S2) on textbook TF-IDF : 0.00
cos(S1, S2) on sklearn TF-IDF  : 0.54

Reading the three numbers

  • Raw counts: \(S_1 \cdot S_2 = 2\cdot 2 + 1 + 1 = 6\) and \(\Vert S_1\Vert^2 = \Vert S_2\Vert^2 = 8\), so \(6/8 = 0.75\). “Similar” only because both contain the, sat, on.
  • Textbook TF-IDF: the only shared terms have idf 0, so the cat sentence and the dog sentence are orthogonal.
  • sklearn’s smoothing keeps a little of the, sat, on: 0.54.

Retrieval: a search engine in one line

The most relevant document for a query \(q\) is \(\arg\max_j \cos(q, d_j)\).

query = ["the dog on the mat"]
for name, vec in [("raw counts", count_vec), ("sklearn TF-IDF", tfidf_vec)]:
    sims = cosine_similarity(vec.transform(query), vec.transform(docs))[0]
    print(f"{name:15} similarities {sims.round(3)} -> best: S{sims.argmax() + 1}")
raw counts      similarities [0.802 0.802 0.802] -> best: S1
sklearn TF-IDF  similarities [0.665 0.744 0.665] -> best: S2

On raw counts all three sentences tie: the and on decide everything. TF-IDF breaks the tie on the informative word, dog. (np.argmax returns the first of a tie, so “S1” on the first line is an accident.)

Word Embeddings

Word Embeddings

Word embeddings represent words as dense vectors in high-dimensional spaces.

The individual values of the vector may be difficult to interpret, but the overall pattern is that words with similar meanings are close to each other, in the sense that their vectors have small angles with each other.

Question: Is that true with one-hot encodings? Answer: No, with one-hot encodings, the similarity of two words is 0 if they are different, and 1 if they are the same.

The same holds for bag of words and TF-IDF: every word is its own axis, so “doctor” and “physician” are orthogonal and two documents look similar only if they share literal words.

The similarity of two word embeddings is again the cosine of the angle between them.

Static vs Contextual Embeddings

Word embeddings can be static or contextual.

Static:
A static embedding is when each word has a single embedding, e.g., Word2Vec.

Contextual:
A contextual embedding (used by more complex language model embedding algorithms) allows the embedding for a word to change depending on its context in a sentence.

Word2Vec: Static Embeddings

Word2Vec (Mikolov et al. 2013) is a technique to learn static word embeddings from large text corpora.

Key characteristics:

  • Each word has a single fixed vector representation
  • Trained to predict a word from its context (CBOW) or the context from a word (Skip-gram)
  • Captures semantic relationships: king - man + woman ≈ queen
  • Popular pre-trained model: Google News (300d). Related: GloVe, which is count-based (it factorizes global word co-occurrence counts) rather than predictive

Advantages:

  • Fast to train and use
  • Efficient for large vocabularies
  • Good for similarity tasks, clustering
  • Pre-trained embeddings available

Disadvantages:

  • Limited context and no word order information.
  • For phrases and sentences, the embedding is the average of the word embeddings.

Contextual vs Static Embeddings

Feature Static (Word2Vec, GloVe) Contextual (BERT, GPT)
Representation One vector per word Different vectors per context
Example “bank” always same vector “bank” differs in “river bank” vs “bank account”
Model Type Shallow model Deep transformer model
Training Fast, lightweight Slow, resource-intensive
Best For Similarity, clustering, simple tasks Complex understanding, ambiguity resolution
Dimensionality 100-300 dimensions 768-1024+ dimensions

When to use Word2Vec:

  • Limited computational resources
  • Task doesn’t require deep context understanding
  • Working with domain-specific corpora (train custom embeddings)

When to use Contextual Embeddings:

  • Need to handle polysemy (words with multiple meanings)
  • Complex NLP tasks (NER, question answering, translation)
  • Have access to GPU resources

Language Models

Language Models

A language model is a statistical tool that predicts the probability of a sequence of words. It helps in understanding and generating human language by learning patterns and structures from large text corpora.

  1. N-gram Models:
    • Predict the next word based on the previous \(n-1\) words.
    • Simple and effective for many tasks but limited by fixed context size.
  2. Neural Language Models:
    • Use neural networks to capture more complex patterns.
    • Examples include RNNs, LSTMs, and Transformers.

See RNNs and LSTMs for more details.

We’ll skip N-grams and focus on Transformers.

Transformers

Transformers: High-Level Overview

Transformers (Vaswani et al. 2017) are the foundation of modern NLP systems.

Key innovations:

  • Use attention mechanism to process entire sequences (e.g. context window) in parallel
    • Attention costs \(O(n^2)\) in the sequence length \(n\); Flash Attention (chunking) and sparse attention make long contexts affordable.
  • Revolutionized NLP and enabled LLMs (BERT, GPT-4, ChatGPT)
  • Scalable across GPUs for massive models

Transformer Architecture

Components:

  • Encoder: Processes input text, creates rich representations
  • Decoder: Generates output text using encoder representations
  • Attention: Allows model to focus on relevant parts of input

Other variants of the transformer architecture include the encoder-only and decoder-only architectures.

Encoder-Decoder Building Blocks

Can grow the model size by increasing the number of layers and the number of attention heads.

Transformer Building Block

Components:

  • Attention mechanism – gathers information from neighboring tokens in the input sequence.
  • Feed-forward neural network – processes the information gathered by the attention mechanism.
  • Layer normalization – normalizes the output of each sub-layer (attention and feed-forward).

The Attention Mechanism

Attention allows models to understand which words are most relevant to each other.

Example sentence:

“The elephant didn’t cross the river because it was tired.”

Question: What does “it” refer to?

  • Attention helps the model determine that “it” = “elephant” (not “river”)
  • The model “attends” more strongly to “elephant” when processing “it”

How Attention Works (Simplified)

For each word in a sentence:

  1. Calculate relevance scores with all other words
  2. Apply softmax to get attention weights (sum to 1)
  3. Compute weighted sum of word representations
  4. Result: each word’s representation includes context from relevant words

Multi-head attention: Run multiple attention operations in parallel to capture different types of relationships

It’s a form of adaptive network where some weights are derived from inputs.

Queries, Keys, and Values

The attention mechanism uses three types of vectors for each word:

  • Query (Q): “What am I looking for?”
  • Key (K): “What do I contain?”
  • Value (V): “What information do I have?”

Attention formula: \[\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V\]

  • Compute similarity between queries and keys
  • Normalize with softmax
  • Weight the values by attention scores

Attention Visualized

Darker connections show stronger attention.

When processing “it”, the model attends most to “elephant”.

This is how transformers handle long-range dependencies and ambiguity.

See also BertViz for a visual exploration of the attention mechanism.

Transformer Architectures

3 Types of Transformer Models

  1. Encoder-Decoder – Sequence-to-sequence tasks (e.g., machine translation)
    • Example: Original Transformer, T5
  2. Encoder-Only – Transforms text embeddings into latent representations for understanding and classification tasks
    • Example: BERT (sentiment analysis, NER, classification)
  3. Decoder-Only – Predicts next token used for text generation and completion
    • Example: GPT (ChatGPT, text generation, AI assistants)

BERT: Encoder Model

BERT (Bidirectional Encoder Representations from Transformers) (Devlin et al. 2019)

Key features:

  • Reads text bidirectionally (considers context from both directions)
  • Pre-trained on masked language modeling (predict hidden words)
  • 340M parameters (BERT-Large), 110M (BERT-Base)
  • Fine-tuned for specific tasks with one additional layer

Common uses: Text classification, NER, question answering, sentiment analysis

GPT: Decoder Model

GPT (Generative Pre-trained Transformer) (Brown et al. 2020)

Key features:

  • Reads text left-to-right (autoregressive)
  • Predicts next token: \(P(t_1, t_2, \ldots, t_N) = P(t_1)\prod_{n=2}^{N} P(t_n | t_1, \ldots t_{n-1})\)
  • GPT-3: 175 billion parameters
  • Excellent at text generation

Common uses: Text completion, creative writing, chatbots, code generation

Transformer Applications

Transformers enable powerful NLP applications:

  • Machine Translation: Translate between languages
  • Text Summarization: Generate concise summaries
  • Question Answering: Answer questions from context
  • Named Entity Recognition: Identify entities in text
  • Sentiment Analysis: Determine sentiment/emotion
  • Text Generation: Create human-like text

NLP Packages Overview

NLTK: Natural Language Toolkit

NLTK is one of the most comprehensive Python libraries for NLP, created for teaching and research.

Key Features:

  • Extensive text processing tools (tokenization, stemming, tagging, parsing)
  • Access to 50+ corpora and lexical resources (WordNet, TreeBank)
  • Sentiment analysis, text classification, and chunking

Best For:

  • Learning classical NLP concepts and fundamentals
  • Academic research and prototyping
  • Working with linguistic data structures
  • Access to curated corpora

Limitations:

  • Slower than modern libraries
  • Less suited for production
  • Requires more manual pipeline construction

spaCy: Production-Ready NLP

spaCy is a modern, industrial-strength NLP library designed for production use.

Key Features:

  • Fast and efficient (Cython-optimized)
  • Tokenization for 75+ languages, trained pipelines for about 25
  • Built-in NER, POS tagging, dependency parsing
  • Word vectors and document similarity
  • Beautiful visualization tools (displaCy)
  • Easy integration with deep learning (PyTorch, TensorFlow)

Best For:

  • Production NLP pipelines
  • Real-time text processing
  • Information extraction at scale
  • Named Entity Recognition
  • Document analysis and classification

LangChain: Overview

LangChain (Chase 2022) is a framework for building applications on top of large language models.

  • One interface to many model providers, so the model can be swapped without rewriting the application
  • Chains prompts, model calls, document retrieval and tool calls into one pipeline
  • Typical uses: chatbots over your own documents (retrieval-augmented generation), information extraction, summarization

Retrieval-augmented generation retrieves the documents nearest the question, as on the retrieval slide above but usually with dense embeddings, and hands them to the language model.

Where the code lives

Runnable examples of every package on these slides (NLTK preprocessing and sentiment, the spaCy pipeline and NER, BERTopic with its visualizations, and a LangChain pointer) are in Appendix A5: NLP Packages on the course website, which also has a Colab notebook.

The rest of this lecture looks at two applications: named entity recognition and topic modeling.

Named Entity Recognition (NER)

What is Named Entity Recognition?

Named Entity Recognition (NER) is the task of identifying and classifying named entities in text into predefined categories.

Common entity types:

  • PERSON: Names of people (e.g., “Barack Obama”)
  • ORG: Companies, agencies (e.g., “Google”, “FBI”)
  • LOC: Non-political locations (e.g., “Mount Everest”)
  • GPE: Geopolitical entities (countries, cities, states, e.g., “Paris”)
  • DATE: Dates and times (e.g., “January 1, 2024”)
  • MONEY: Monetary values (e.g., “$100”)

Applications: Information extraction, content classification, question answering, knowledge graphs

NER with spaCy

spaCy’s small English pipeline (en_core_web_sm) tags one sentence pair:

Apple Inc. ORG was founded by Steve Jobs PERSON in Cupertino GPE , California GPE , in 1976 DATE . It reported revenue of $391 billion MONEY in fiscal 2024 DATE .
  • One call runs the whole pipeline: tokenizer → tagger → parser → lemmatizer → NER.
  • The NER component is a trained model, not a list of names: “fiscal 2024” is a DATE because of how it is used.
  • The code, entity attributes and the pipeline components are in Appendix A5.

Topic Modeling

What is Topic Modeling?

Topic modeling is an unsupervised learning technique that discovers abstract “topics” in a collection of documents.

Key concepts:

  • Topic: A distribution over words (e.g., “sports” → {game, team, player, score, …})
  • Document: A mixture of topics
  • Goal: Automatically discover topics and their distributions

Applications:

  • Content recommendation and discovery
  • Document organization and clustering
  • Trend analysis over time
  • Search and information retrieval
  • Content summarization

Classical approaches (LDA, NMF) use bag-of-words representations and require specifying the number of topics.

Modern approaches (BERTopic) cluster transformer embeddings; the clustering step decides how many topics there are, given a minimum topic size.

BERTopic: Overview

BERTopic (Grootendorst 2022) is a modern topic modeling technique using transformer embeddings.

Key advantages:

  • Uses semantic embeddings from a transformer (captures context and meaning)
  • HDBSCAN chooses the number of topics, given min_topic_size
  • Works on short documents (tweets, reviews, titles)
  • Built-in interactive visualizations

What it still needs from you:

  • A stop-word list for the topic words (it is TF-IDF underneath)
  • A choice of min_topic_size, which sets how fine the topics are
  • Reading the topics: some will be junk
  • A GPU for large corpora

BERTopic: How It Works

BERTopic uses a modular pipeline with four main steps:

1. Document Embeddings

  • Use a pre-trained sentence-transformer model
  • Each document → a dense vector (384 dimensions for all-MiniLM-L6-v2, 768+ for larger models)
  • Captures semantic meaning and context

2. Dimensionality Reduction (UMAP)

  • Reduce to ~5 dimensions
  • Preserves local and global structure
  • Enables efficient clustering

3. Clustering (HDBSCAN)

  • Density-based clustering algorithm
  • Determines the number of clusters from the density, given a minimum cluster size
  • Assigns outliers to the -1 topic

4. Topic Representation (c-TF-IDF)

  • Concatenate each cluster’s documents into one “document” and run TF-IDF over the clusters
  • Extracts most representative words per topic
  • Creates interpretable topic labels

BERTopic on three newsgroups

The same three newsgroups we clustered in Lecture 4:

BERTopic setup and fit (full walkthrough in Appendix A5)
from bertopic import BERTopic
from sentence_transformers import SentenceTransformer
from sklearn.datasets import fetch_20newsgroups
from umap import UMAP

categories = ['comp.os.ms-windows.misc', 'sci.space', 'rec.sport.baseball']
posts = fetch_20newsgroups(subset='all', categories=categories,
                           remove=('headers', 'footers', 'quotes'))['data']
posts = [p for p in posts if len(p.split()) >= 5]       # drop empty posts

embedder = SentenceTransformer("all-MiniLM-L6-v2")
embeddings = embedder.encode(posts, show_progress_bar=False)   # step 1, computed once

def fit_bertopic(min_topic_size):
    model = BERTopic(
        embedding_model=embedder,
        umap_model=UMAP(n_neighbors=15, n_components=5, min_dist=0.0,
                        metric="cosine", random_state=42),
        vectorizer_model=CountVectorizer(stop_words="english",
                                         token_pattern=r"(?u)\b[a-zA-Z]{3,15}\b"),
        min_topic_size=min_topic_size)
    topics, _ = model.fit_transform(posts, embeddings)
    return model, topics

for size in (20, 10):
    model, topics = fit_bertopic(size)
    print(f"min_topic_size={size}: {len(set(topics) - {-1})} topics, "
          f"{topics.count(-1)} outliers out of {len(posts)} posts")
min_topic_size=20: 3 topics, 0 outliers out of 2823 posts
min_topic_size=10: 21 topics, 285 outliers out of 2823 posts

With min_topic_size=20 HDBSCAN finds exactly the three newsgroups, without ever seeing a label. Halve it and the same embeddings give 21 topics. The number of topics is a consequence of the minimum size you ask for, not a property of the data alone.

BERTopic: the topics

With min_topic_size=10 we get many small topics; reduce_topics merges the most similar ones until 10 remain (the outlier row −1 counts as one).

topic_model = model
topic_model.reduce_topics(posts, nr_topics=10)
info = topic_model.get_topic_info()
info["Top words"] = [", ".join(w for w, _ in topic_model.get_topic(t)[:5]) for t in info.Topic]
print(info[["Topic", "Count", "Top words"]].to_string(index=False))
 Topic  Count                                    Top words
    -1    285               windows, file, dos, files, use
     0    993            space, nasa, earth, launch, orbit
     1    925            year, game, team, games, baseball
     2    351               windows, file, dos, use, files
     3    123          card, mouse, drivers, driver, video
     4     54          printer, print, deskjet, canon, ink
     5     39 font, fonts, characters, truetype, character
     6     21      sound, midi, driver, play, soundblaster
     7     20                      max, bhj, giz, bxn, chz
     8     12             disks, mac, read, disk, hardware

Space and baseball stay whole. Windows splits into drivers, printers, fonts, sound and disks. Topic 7 is junk (posts of encoded binary files), and the 285 outliers are mostly Windows posts. Always read your topics.

BERTopic: Visualize Topics

Code
fig = topic_model.visualize_topics()
fig.update_layout(width=600, height=450)
fig.show()

Each circle is a topic, sized by its number of posts, placed by the similarity of the topics’ c-TF-IDF vectors.

Summary

What you should now be able to do

  1. Text → tokens → vectors. Tokenize (characters, words, subwords); every preprocessing decision (case, punctuation, stop words, stem or lemma) changes the vocabulary.
  2. TF-IDF \(= \mathrm{tf} \times \ln(N/\mathrm{df})\): frequent here, rare overall. A term in every document gets 0. scikit-learn smooths the idf and \(\ell_2\)-normalizes the rows, which is why the = 0.6165 survives in its table.
  3. Cosine similarity compares direction. On the three sentences: 0.75 on counts, 0 on textbook TF-IDF, 0.54 on sklearn’s. Retrieval is \(\arg\max_j \cos(q, d_j)\).
  4. Sparse vs dense. Sparse vectors see shared words, not synonyms. Embeddings learn dense vectors where similar meaning means a small angle; attention makes them depend on context (QKV, softmax-weighted sum). BERT encodes, GPT generates.
  5. Tools. NLTK and spaCy for preprocessing and NER; BERTopic = embed → UMAP → HDBSCAN → c-TF-IDF; runnable examples in Appendix A5.

References

Brown, Tom B, Benjamin Mann, Nick Ryder, et al. 2020. “Language Models Are Few-Shot Learners.” arXiv Preprint arXiv:2005.14165, ahead of print. https://doi.org/10.48550/arXiv.2005.14165.
Chase, Harrison. 2022. LangChain. Https://github.com/langchain-ai/langchain.
Devlin, Jacob, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2019. “BERT: Pre-Training of Deep Bidirectional Transformers for Language Understanding.” arXiv Preprint arXiv:1810.04805, ahead of print. https://doi.org/10.48550/arXiv.1810.04805.
Grootendorst, Maarten. 2022. “BERTopic: Neural Topic Modeling with a Class-Based TF-IDF Procedure.” arXiv Preprint arXiv:2203.05794. https://arxiv.org/abs/2203.05794.
Mikolov, Tomas, Kai Chen, Greg Corrado, and Jeffrey Dean. 2013. “Efficient Estimation of Word Representations in Vector Space.” Proceedings of Workshop at ICLR. https://arxiv.org/abs/1301.3781.
Vaswani, Ashish, Noam Shazeer, Niki Parmar, et al. 2017. “Attention Is All You Need.” Proceedings of the 31st Conference on Neural Information Processing Systems (NIPS 2017) (Long Beach, CA, USA), 11. https://arxiv.org/abs/1706.03762.
