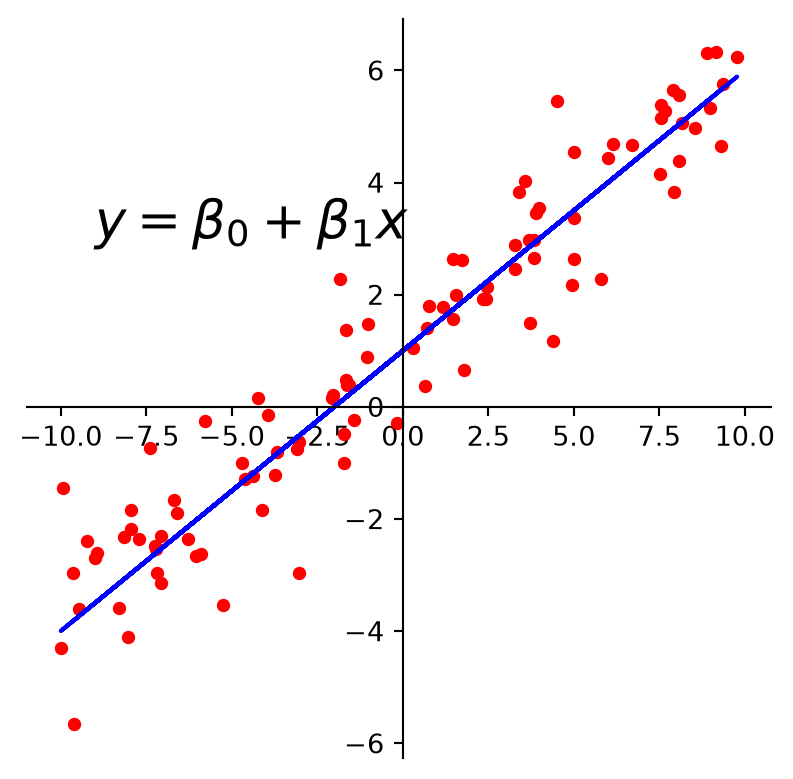

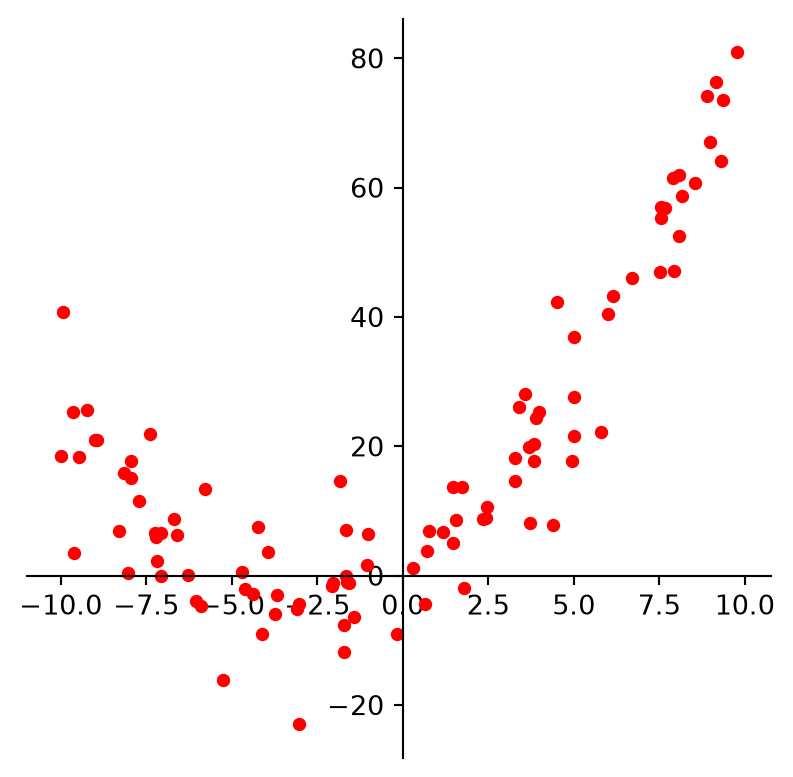

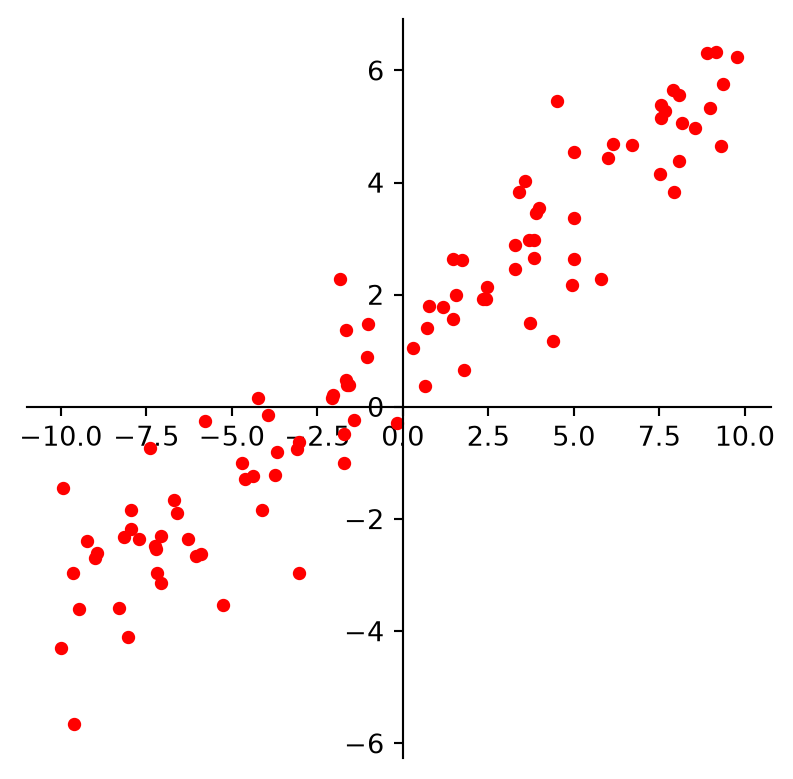

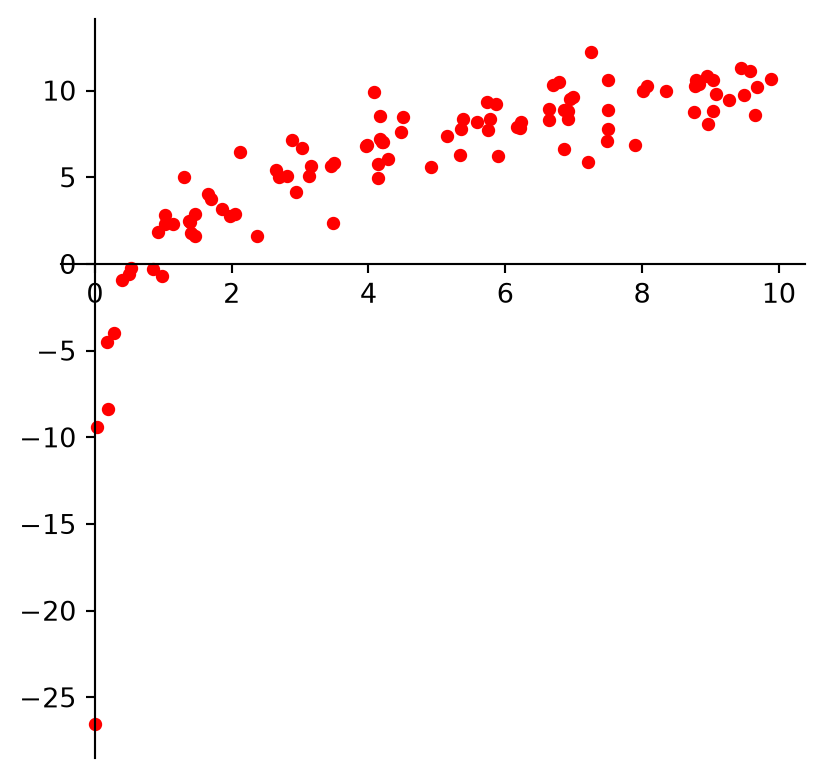

Clearly, none of these datasets agrees perfectly with the proposed model.
So the question arises:
How do we find the best linear function (or quadratic function, or logarithmic function) given the data?
Framework
Framework
This problem has been studied extensively in the field of statistics.
Certain terminology is used:
Some values are referred to as “independent,” and
Some values are referred to as “dependent.”
Framework cont.
The basic regression task is:
given a set of independent variables
and the associated dependent variables,
estimate the parameters of a model (such as a line, parabola, etc) that describes how the dependent variables are related to the independent variables.
Framework cont.
The independent variables are collected into a matrix \(X,\) sometimes called the design matrix.
The dependent variables are collected into an observation vector \(\mathbf{y}.\)
The parameters of the model (for any kind of model) are collected into a parameter vector \(\boldsymbol\beta.\)
Of course, if the data points don’t actually lie exactly on a line,
… then there are no parameters \(\beta_0, \beta_1\) for which the predicted \(y\)-values in \(X\boldsymbol\beta\) equal the observed \(y\)-values in \(\mathbf{y}\),
… and \(X\boldsymbol\beta=\mathbf{y}\) has no solution.

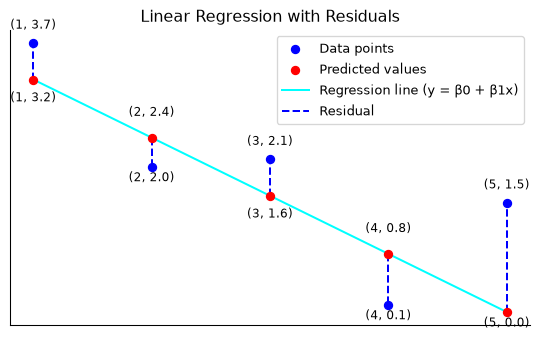

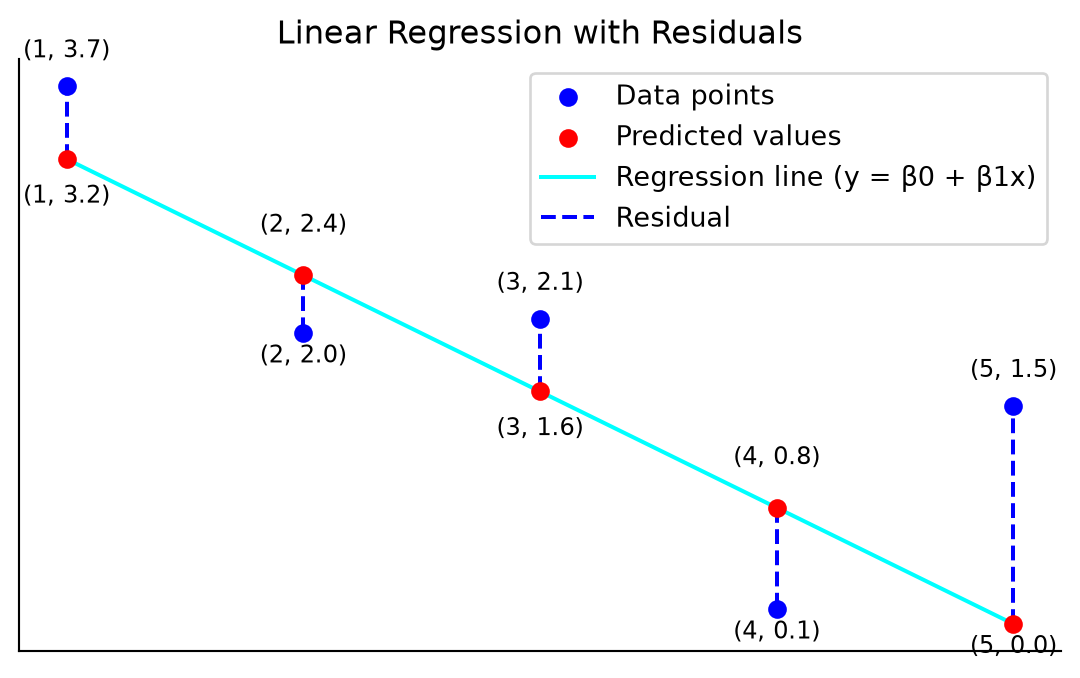

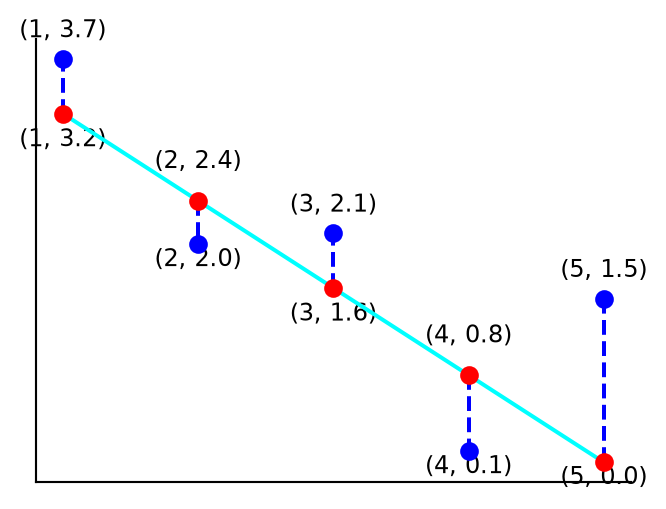

Now, since the data doesn’t fall exactly on a line, we have decided to seek the \(\boldsymbol\beta\) that minimizes the sum of squared residuals, i.e.,
The sum of squares of the residuals is exactly the square of the distance between the vectors \(X\boldsymbol\beta\) and \(\mathbf{y}.\)
Computing the least-squares solution of \(X\boldsymbol\beta = \mathbf{y}\) is equivalent to finding the \(\boldsymbol\beta\) that determines the least-squares line.
Now, to obtain the least-squares line, find the least-squares solution to \(X\boldsymbol\beta = \mathbf{y}.\)
Where does that solution come from? Not from a formula to memorize – from a picture.
Least squares is a projection
As \(\boldsymbol\beta\) varies, \(X\boldsymbol\beta\) ranges over the column space\(\text{Col}(X)\): all linear combinations of the columns of \(X\).
We want the point \(\hat{\mathbf{y}} = X\hat{\boldsymbol\beta}\) of \(\text{Col}(X)\) that is closest to \(\mathbf{y}\).
The closest point of a subspace is the orthogonal projection of \(\mathbf{y}\) onto it. So the residual \(\mathbf{e} = \mathbf{y} - \hat{\mathbf{y}}\) is perpendicular to the subspace, hence to every column of \(X\): \[X^T(\mathbf{y} - X\hat{\boldsymbol\beta}) = \mathbf{0}.\]
The same condition from calculus
The loss is the squared length of the residual, \(\lVert \mathbf{y} - X\boldsymbol\beta \rVert^2\). Its gradient is
The geometry says why it holds; the derivative gives an equation to solve. It is a minimum, not just a flat point, because the loss is a convex bowl.
The normal equations
Rearranging \(X^T(\mathbf{y} - X\hat{\boldsymbol\beta}) = \mathbf{0}\) gives the normal equations:
\[
X^TX\hat{\boldsymbol\beta} = X^T\mathbf{y}.
\]
They say exactly this: the residual \(X\hat{\boldsymbol\beta} - \mathbf{y}\) is normal (i.e. orthogonal) to the column space of \(X\).
The normal equations always have at least one solution (\(X^T\mathbf{y}\) lies in the column space of \(X^T\), which equals the column space of \(X^TX\)).
If \(X^TX\) is invertible, the solution is unique:
\(P = X(X^TX)^{-1}X^T\) is the projection matrix, or hat matrix (it puts the hat on \(\mathbf{y}\)). It depends only on \(X\), not on \(\mathbf{y}\).
\(P\) is symmetric (\(P^T = P\)) and idempotent (\(P^2 = P\)): projecting twice changes nothing.
\(\operatorname{tr} P = p\), the number of columns of \(X\): the fit “uses up” \(p\) degrees of freedom.
The residual is \(\mathbf{e} = (I - P)\mathbf{y}\), and \(\hat{\mathbf{y}}^T\mathbf{e} = \mathbf{y}^TP(I-P)\mathbf{y} = 0\): fitted values and residuals are orthogonal. That is Pythagoras, \(\|\mathbf{y}\|^2 = \|\hat{\mathbf{y}}\|^2 + \|\mathbf{e}\|^2\), and it becomes \(\text{TSS} = \text{RSS} + \text{ESS}\) below.
The diagonal entry \(P_{ii}\) is the leverage of observation \(i\): how hard \(y_i\) pulls on its own fitted value. It returns when we look at residuals.
When is \(X^TX\) invertible?
For \(X\) an \(n \times p\) matrix (\(n\) observations, \(p\) columns):
\[
X^TX \text{ is invertible} \iff X \text{ has full column rank, i.e. } \operatorname{rank}(X) = p,
\]
meaning no column of \(X\) is a linear combination of the others.
This requires \(n \geq p\) (at least as many observations as columns), but \(n \ge p\) alone is not enough: two identical columns make \(X^TX\) singular at any \(n\).
When \(X^TX\) is singular the normal equations still have solutions – infinitely many. The fitted values \(\hat{\mathbf{y}} = P\mathbf{y}\) are still unique (the projection is), but the coefficients are not: the fit is determined, \(\boldsymbol\beta\) is not. Nearly collinear columns cause the same trouble in a milder form, which is where regularization comes in next lecture.
The General Linear Model
The General Linear Model
Another way that the inconsistent (i.e. no exact solution) linear system is often written is to collect all the residuals into a residual vector.
where \(\boldsymbol\epsilon\) is the residual vector.
Any equation of this form is referred to as a linear model.
In this formulation, the goal is to find the \(\boldsymbol\beta\) so as to minimize the norm of \(\boldsymbol\epsilon\), i.e., \(\Vert\boldsymbol\epsilon\Vert.\)

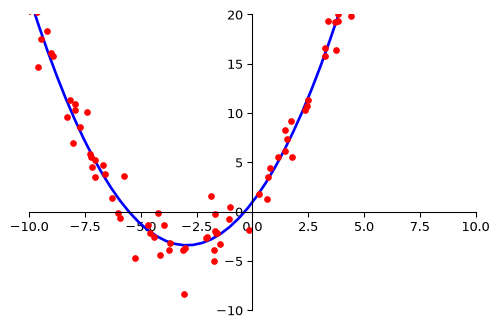

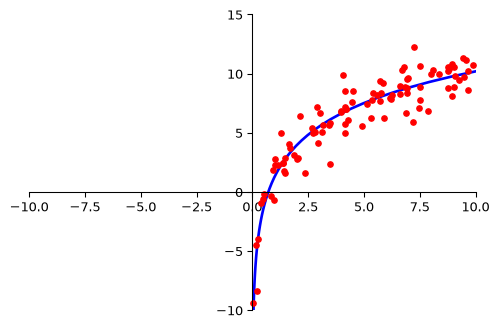

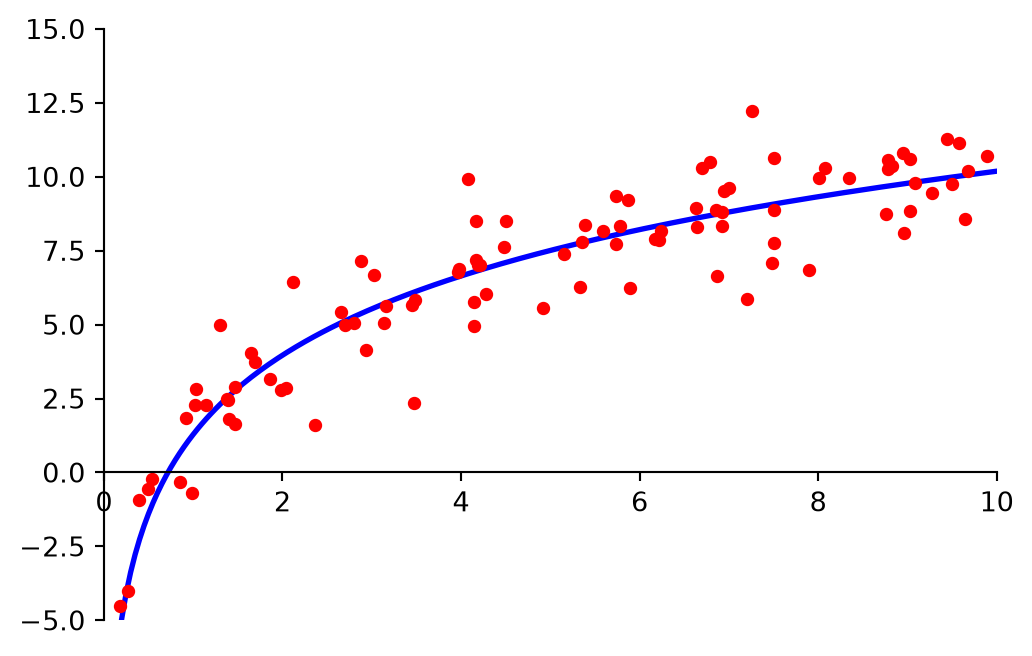

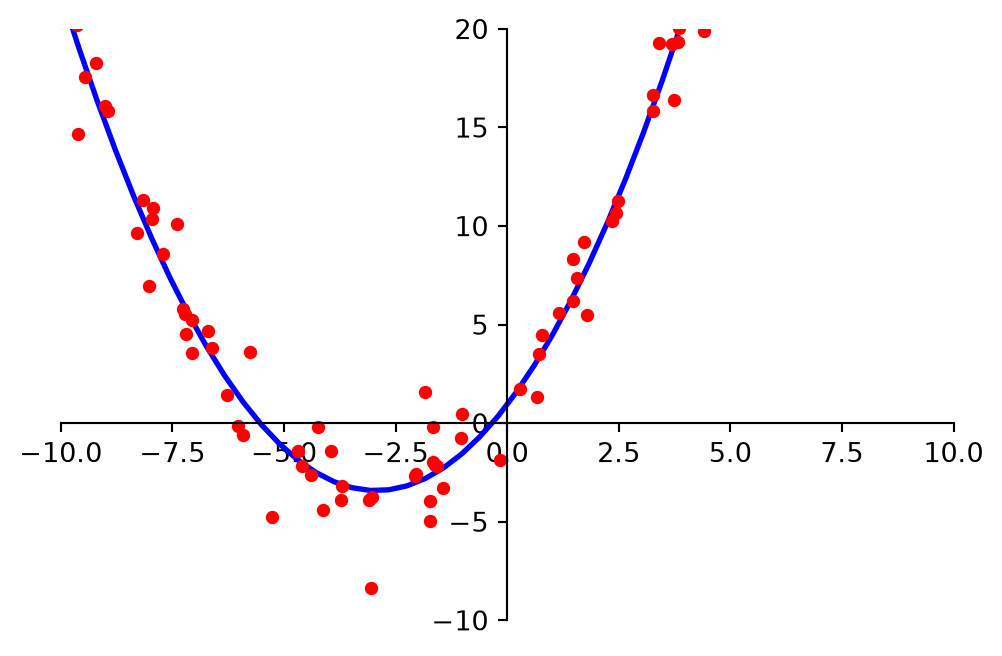

In some cases, one would like to fit data points with something other than a straight line.
In cases like this, the matrix equation is still \(X\boldsymbol\beta = \mathbf{y}\), but the specific form of \(X\) changes from one problem to the next.
Least-Squares Fitting of Other Models
In model fitting, the parameters of the model are what is unknown.
A central question for us is whether the model is linear in its parameters.
For example, is this model linear in its parameters?
\[
y = \beta_0 e^{-\beta_1 x}
\]
It is not linear in its parameters.
Is this model linear in its parameters?
\[
y = \beta_0 e^{-2 x}
\]
It is linear in its parameters.
For a model that is linear in its parameters, an observation is a linear combination of (arbitrary) known functions.
In other words, a model that is linear in its parameters is
np.linalg.inv(X.T @ X) @ X.T @ y mirrors the formula and is fine for a first look, but forming the inverse is numerically unstable when columns of \(X\) are nearly collinear – small rounding errors in \(X^TX\) become large errors in \(\hat{\boldsymbol\beta}\). From here on we use np.linalg.lstsq(X, y), which solves the same least-squares problem stably (via a QR or SVD factorization); np.linalg.solve(X.T @ X, X.T @ y) is the other common choice.
with \(f_0,\dots,f_{p-1}\) any sort of known functions and \(\beta_0,\dots,\beta_{p-1}\) unknown weights.
Example

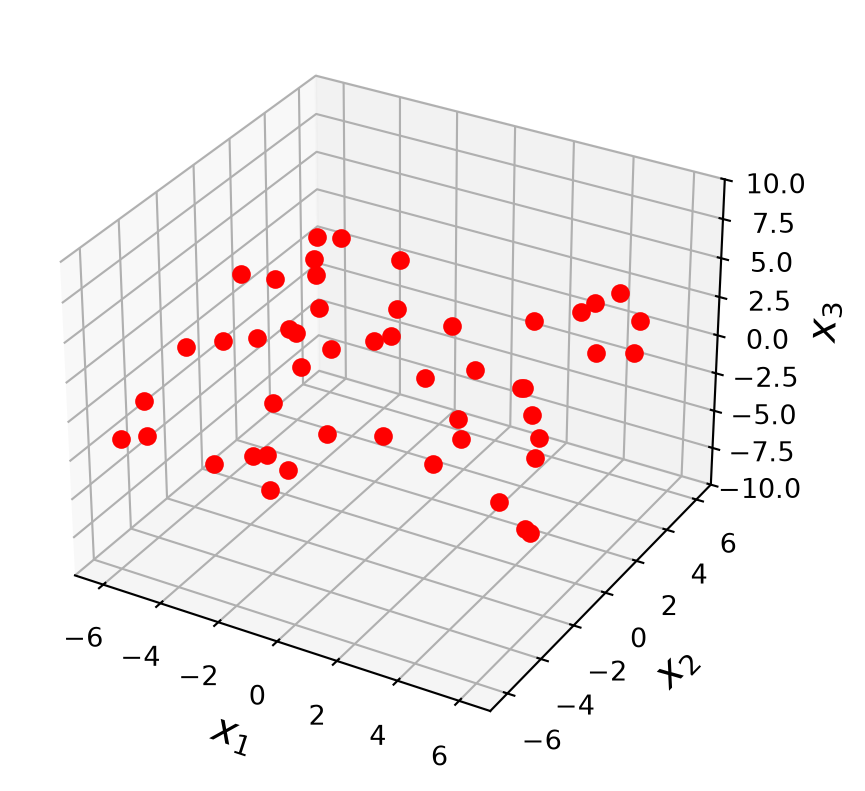

Let’s take an example. Here are a set of points in \(\mathbb{R}^3\):
Code
ax = ut.plotSetup3d(-7, 7, -7, 7, -10, 10, figsize = (5, 5))v = [4.0, 4.0, 2.0]u = [-4.0, 3.0, 1.0]npts =50# set locations of points that fall within x,ynp.random.seed(1)xc =-7.0+14.0* np.random.random(npts)yc =-7.0+14.0* np.random.random(npts)A = np.array([u,v]).T# project these points onto the planeP = A @ np.linalg.inv(A.T @ A) @ A.Tcoords = P @ np.array([xc, yc, np.zeros(npts)])coords[2] += np.random.randn(npts)ax.plot(coords[0], coords[1], 'ro', zs=coords[2], markersize =6)plt.show()
Example
In geography, local models of terrain are constructed from data
\[
(u_1, v_1, z_1), \dots, (u_n, v_n, z_n),
\]
where \(u_j, v_j\), and \(z_j\) are latitude, longitude, and altitude, respectively.
Let’s describe the linear models that gives a least-squares fit to such data.
The solution is called the least-squares plane.
Solution
The model is \(z = \beta_0 + \beta_1 u + \beta_2 v + \epsilon\): altitude as a linear function of latitude and longitude. We expect the data to satisfy these equations:
u_obs, v_obs, z_obs = coords# design matrix [1, u, v] and the least-squares planeX_plane = np.column_stack([np.ones(npts), u_obs, v_obs])beta_plane, *_ = np.linalg.lstsq(X_plane, z_obs, rcond=None)z_hat = X_plane @ beta_planeax = ut.plotSetup3d(-7, 7, -7, 7, -10, 10, figsize = (7, 7))ax.set_xlabel('$u$', size=15)ax.set_ylabel('$v$', size=15)ax.set_zlabel('$z$', size=15)# the fitted plane ...uu, vv = np.meshgrid(np.linspace(-7, 7, 10), np.linspace(-7, 7, 10))ax.plot_surface(uu, vv, beta_plane[0] + beta_plane[1] * uu + beta_plane[2] * vv, color='green', alpha=0.3)# ... and the residual from each point to itfor ui, vi, zi, zh inzip(u_obs, v_obs, z_obs, z_hat): ax.plot([ui, ui], [vi, vi], [zi, zh], 'b-', lw=1)ax.plot(u_obs, v_obs, 'ro', zs=z_obs, markersize=6)plt.show()
The green surface is the fitted plane \(\hat z = \hat\beta_0 + \hat\beta_1 u + \hat\beta_2 v\); the blue segments are the residuals it minimizes (in the sum of squares).
This example shows that the linear model for multiple regression has the same form as the model for the simple regression in the earlier examples.
We can see that the general principle is the same across all the different kinds of linear models.
Once \(X\) is defined properly, the normal equations for \(\boldsymbol\beta\) have the same matrix form, no matter how many variables are involved.
Thus, for any linear model where \(X^TX\) is invertible, the least squares estimate is
As a result, \(0\leq R^2\leq 1\) – on the training data, for a model with an intercept. That is what makes \(\text{TSS} = \text{RSS} + \text{ESS}\) hold.
Computed on held-out data (e.g. validation or test) (as r2_score does for Ames below) RSS can exceed TSS, and \(R^2\) can be negative: the model predicts worse than the constant \(\overline{y}\).
This is more specifically called the centered\(R^2\); it assumes an intercept. We will meet the uncentered variant in a moment, when a software package quietly switches to it.
\(R^2\), cont.
The closer the value of \(R^2\) is to \(1\) the better the fit of the regression:
small values of RSS imply that the residuals are small and therefore we have a better fit.
\(R^2\) is called the coefficient of determination.
It tells us “how well does the model predict the data?”
\(R^2\) and Pearson’s \(r\)
\(R^2\) is related to, but not the same thing as, Pearson’s correlation coefficient\(r\).
For simple regression (one feature plus an intercept), \(R^2 = r^2\) exactly, where \(r = \text{corr}(x, y)\). That is where the notation comes from, and why people sometimes write \(r^2\).
In general (any number of features, with an intercept, in-sample), \[R^2 = \text{corr}(\mathbf{y}, \hat{\mathbf{y}})^2,\] the squared correlation between the observations and the model’s predictions.
So \(R^2\) is a correlation squared, but between \(\mathbf{y}\) and \(\hat{\mathbf{y}}\), not between two raw variables. Two features can each be correlated with \(y\) while the model built from them predicts it poorly; to judge predictions against ground truth, use \(R^2\) (and use it on held-out data).
OLS in Practice
OLS in Practice

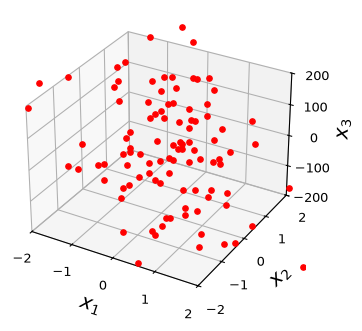

First, we’ll look at a test case on synthetic data. We’ll use Scikit-Learn’s make_regression function.
from sklearn import datasetsX, y = datasets.make_regression(n_samples=100, n_features=20, n_informative=5, bias=0.1, noise=30, random_state=1)
And then use the statsmodels package to fit the model.
import statsmodels.api as sm# statsmodels does not add an intercept for you: prepend a column of onesX_with_intercept = sm.add_constant(X)model = sm.OLS(y, X_with_intercept)results = model.fit()
The \(R^2\) value is very good. We can see that the linear model does a very good job of predicting the observations \(y_i\).
Uncentered \(R^2\)
sm.OLS does not add an intercept for you – hence sm.add_constant. Fit sm.OLS(y, X) on the raw X instead and the summary switches to the uncentered\(R^2\),
and says so in a footnote. Without a constant column the residuals need not sum to zero, \(\text{TSS} = \text{RSS} + \text{ESS}\) fails and the centered \(R^2\) can be negative, so statsmodels divides by \(\sum y_i^2\) instead of \(\sum (y_i - \overline{y})^2\). The uncentered number is almost always larger and is not comparable to the centered one. Try it.
What to read in the summary table
coef: \(\hat\beta_j\), the change in \(y\) per unit of \(x_j\) with the other columns held fixed.
std err: \(\text{SE}(\hat\beta_j) = \sqrt{\hat\sigma^2\,[(X^TX)^{-1}]_{jj}}\), the uncertainty in that estimate.
t and P>|t|: \(\hat\beta_j / \text{SE}\), and the probability of a \(t\) at least this large if the true coefficient were zero.
[0.025 0.975]: the 95% confidence interval \(\hat\beta_j \pm t_{0.025,\,n-p}\,\text{SE}(\hat\beta_j)\). If it contains zero, the data cannot tell \(\beta_j\) from zero.
R-squared and Adj. R-squared: fraction of variance explained; the adjusted version charges for each extra column, so it can go down.
F-statistic: tests “every non-intercept coefficient is zero”.
AIC, BIC: fit-minus-complexity scores for comparing models; lower is better.
The full glossary is in the web notes under Aside: Summary Statistics.
Back to the example.
Some of the independent variables may not contribute to the accuracy of the prediction.

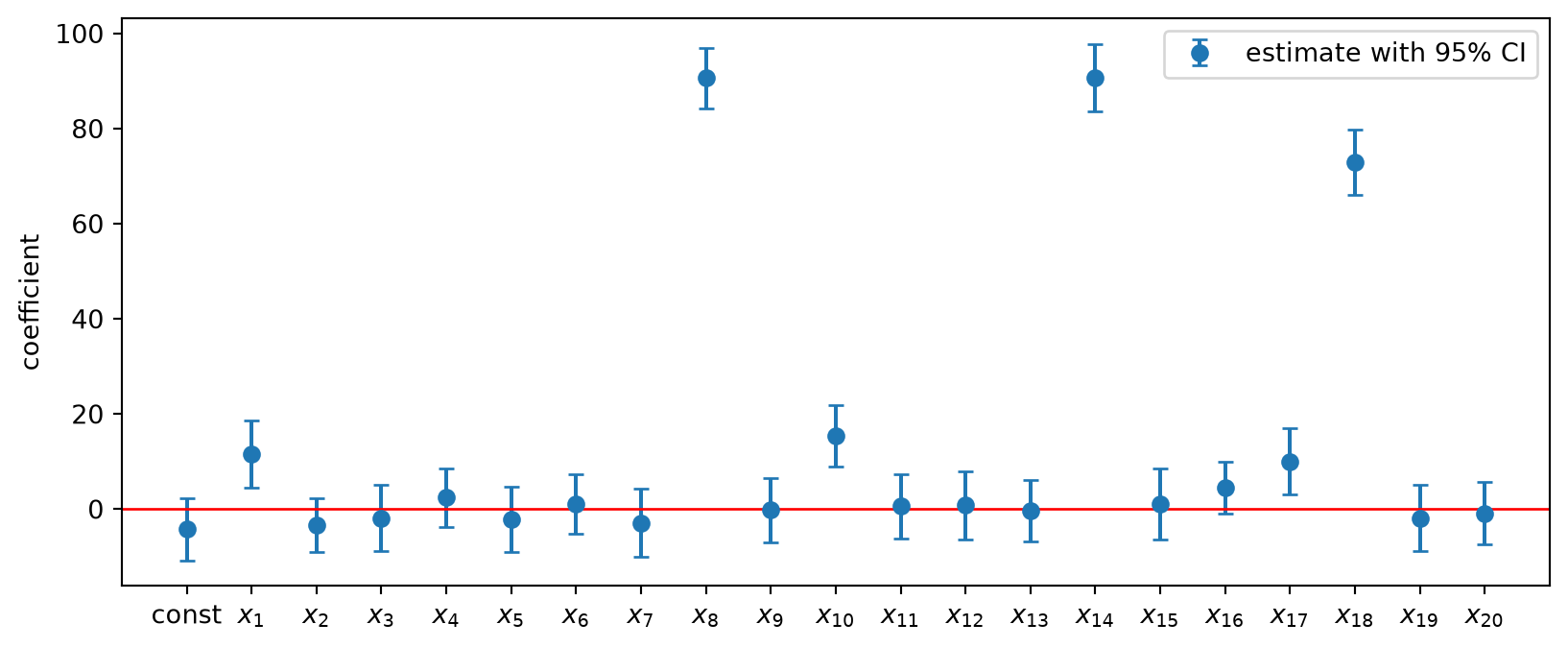

Each coefficient comes with a 95% confidence interval – the [0.025 0.975] columns of the table. Plotting them side by side makes the table readable at a glance:
If a coefficient’s interval contains zero, the data cannot distinguish it from zero, and we cannot assume that there is any relationship between that independent variable and the observations. Six intervals sit clearly away from zero – but make_regression was told n_informative=5. One of the six is a false positive: at the 95% level, roughly one useless column in twenty will look significant by chance, and we have fifteen useless columns.
In other words, if the confidence interval for the parameter includes zero, the associated independent variable may not have any predictive value.
Here that is nearly harmless – make_regression built \(y\) from five informative columns, and we kept those five plus one impostor. In general, though, be careful: choosing the features and judging the fit on the same data is the Lecture 7 anti-pattern. The refit looks better than it is, because the selection step already used the noise in this sample (that is exactly how the impostor got in).
The honest version checks the smaller model on data it has not seen – which is exactly what we do for the Ames houses next.
Dropping a column is also an all-or-nothing choice. Next lecture’s regularization replaces manual pruning with a penalty that shrinks coefficients toward zero smoothly, and lets held-out data pick how hard to shrink.
Real Data: House Prices in Ames, Iowa
Let’s see how powerful multiple regression can be on a real-world example.
A typical application of linear models is predicting house prices.
Linear models have been used for this problem for decades, and when a municipality does a value assessment on your house, they typically use a linear model.
We can consider various measurable attributes of a house (its “features”) as the independent variables, and the most recent sale price of the house as the dependent variable.
For our case study, we will use the features:
Lot Area (sq ft),
Gross Living Area (sq ft),
Number of Fireplaces,
Number of Full Baths,
Number of Half Baths,
Garage Area (sq ft),
Basement Area (sq ft)
So our design matrix will have 8 columns (including the constant for the intercept):
\[
X\beta = \mathbf{y},
\]
and it will have one row for each house in the data set, with \(y\) the sale price of the house.
Ames Housing Data
We will use data from housing sales in Ames, Iowa from 2006 to 2009:
import os, urllib.requestdef data_file(path):"""Course data file: use a local copy (here, or in the repo root above a notebook in jupyter_notebooks/), else fetch it from the Materials repo (Colab)."""for prefix in ('', '../'):if os.path.exists(prefix + path):return prefix + path os.makedirs(os.path.dirname(path) or'.', exist_ok=True) urllib.request.urlretrieve('https://raw.githubusercontent.com/tools4ds/DS701-Materials-FA26/main/'+ path, path)return pathdf = pd.read_csv(data_file('data/ames-housing-data/train.csv'))
Note that removing the intercept will cause the \(R^2\) to go up, which is counter-intuitive. The reason is explained here – but amounts to the fact that the formula for \(R^2\) with/without an intercept is different.
Ames Housing Data, cont.
Let’s split the data into training and test sets.
Code
from sklearn import utils, model_selectionX_train, X_test, y_train, y_test = model_selection.train_test_split( X_intercept, y, test_size =0.5, random_state =0)
Fit the model to the training data.
Code
model = sm.OLS(y_train, X_train)results = model.fit()print(results.summary())
OLS Regression Results
==============================================================================
Dep. Variable: y R-squared: 0.759
Model: OLS Adj. R-squared: 0.757
Method: Least Squares F-statistic: 325.5
Date: Fri, 16 Oct 2026 Prob (F-statistic): 1.74e-218
Time: 15:17:15 Log-Likelihood: -8746.5
No. Observations: 730 AIC: 1.751e+04
Df Residuals: 722 BIC: 1.755e+04
Df Model: 7
Covariance Type: nonrobust
===============================================================================
coef std err t P>|t| [0.025 0.975]
-------------------------------------------------------------------------------
const -4.285e+04 5350.784 -8.007 0.000 -5.34e+04 -3.23e+04
LotArea 0.2361 0.131 1.798 0.073 -0.022 0.494
GrLivArea 48.0865 4.459 10.783 0.000 39.332 56.841
Fireplaces 1.089e+04 2596.751 4.192 0.000 5787.515 1.6e+04
FullBath 1.49e+04 3528.456 4.224 0.000 7977.691 2.18e+04
HalfBath 1.56e+04 3421.558 4.559 0.000 8882.381 2.23e+04
GarageArea 98.9856 8.815 11.229 0.000 81.680 116.291
TotalBsmtSF 62.6392 4.318 14.508 0.000 54.163 71.116
==============================================================================
Omnibus: 144.283 Durbin-Watson: 1.937
Prob(Omnibus): 0.000 Jarque-Bera (JB): 917.665
Skew: 0.718 Prob(JB): 5.39e-200
Kurtosis: 8.302 Cond. No. 6.08e+04
==============================================================================
Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 6.08e+04. This might indicate that there are
strong multicollinearity or other numerical problems.
We see that we have:
\(\beta_0\): Intercept of -$42,850
\(\beta_1\): Marginal value of one square foot of Lot Area: $0.23
but NOTICE - this coefficient is not statistically different from zero!
\(\beta_2\): Marginal value of one square foot of Gross Living Area: $48
\(\beta_3\): Marginal value of one additional fireplace: $10,890
\(\beta_4\): Marginal value of one additional full bath: $14,900
\(\beta_5\): Marginal value of one additional half bath: $15,600
\(\beta_6\): Marginal value of one square foot of Garage Area: $99
\(\beta_7\): Marginal value of one square foot of Basement Area: $62
Coefficients are conditional slopes
Why is a half bath ($15,600) worth more than a full bath ($14,900)?
Each \(\beta_j\) holds the other six features fixed: \(\beta_5\) is the value of a half bath given the living area, basement, garage and so on.
Half baths co-occur with bigger, newer houses, and the coefficient absorbs some of what those features do not capture. Add or remove a correlated feature and the other coefficients move.
A coefficient is a conditional slope, not a price tag – and not a causal claim. Adding a half bath to your house will not raise its price by $15,600.

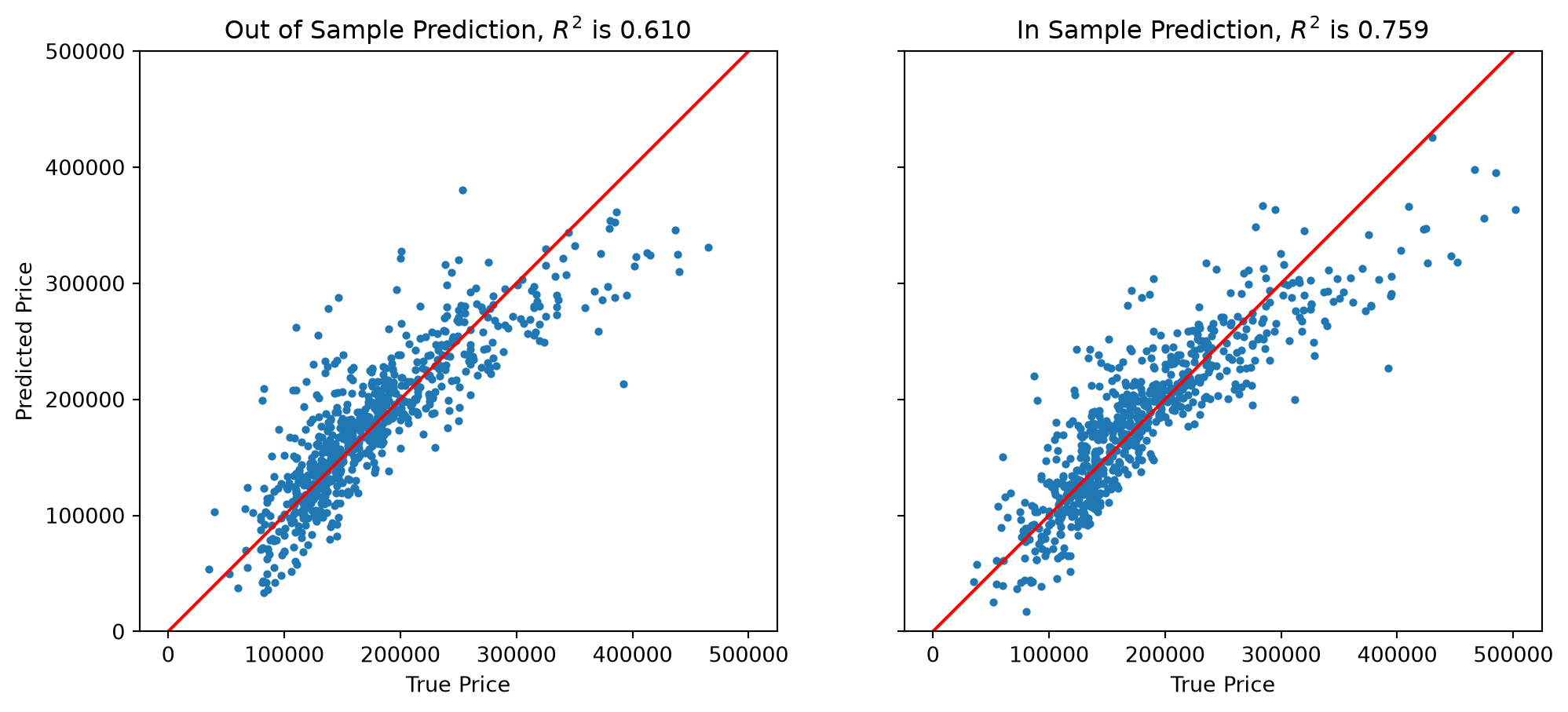

Is our model doing a good job?
The summary table offers many statistics, but two pictures tell us more: the predictions against the ground truth, and then the residuals against the fitted values.
For each house we compute its predicted sale value according to our model:
\[
\hat{\mathbf{y}} = X\hat{\boldsymbol\beta}
\]
Code
from sklearn.metrics import r2_scorefig, (ax1, ax2) = plt.subplots(1,2,sharey ='row', figsize=(12, 5))y_oos_predict = results.predict(X_test)r2_test = r2_score(y_test, y_oos_predict)ax1.scatter(y_test, y_oos_predict, s =8)ax1.set_xlabel('True Price')ax1.set_ylabel('Predicted Price')ax1.plot([0,500000], [0,500000], 'r-')ax1.axis('equal')ax1.set_ylim([0, 500000])ax1.set_xlim([0, 500000])ax1.set_title(f'Out of Sample Prediction, $R^2$ is {r2_test:0.3f}')#y_is_predict = results.predict(X_train)ax2.scatter(y_train, y_is_predict, s =8)r2_train = r2_score(y_train, y_is_predict)ax2.set_xlabel('True Price')ax2.plot([0,500000],[0,500000],'r-')ax2.axis('equal')ax2.set_ylim([0,500000])ax2.set_xlim([0,500000])ax2.set_title(f'In Sample Prediction, $R^2$ is {r2_train:0.3f}')plt.show()
Ignoring fixed x limits to fulfill fixed data aspect with adjustable data limits.
Ignoring fixed x limits to fulfill fixed data aspect with adjustable data limits.
We see that the model does a reasonable job in the middle of the price range, where most of the houses are.
At both ends the predictions are pulled toward the mean: cheap houses are over-predicted and expensive ones under-predicted. That is not a bug in this particular fit. \(\hat{\mathbf{y}}\) is a projection of \(\mathbf{y}\), so it is the shorter vector and \(\text{Var}(\hat{\mathbf{y}}) \le \text{Var}(\mathbf{y})\): fitted values are always less spread out than the truth. This is Galton’s regression to the mean, now falling out of the algebra.
Note that the \(R^2\) on the (held out) test data is 0.610, against 0.759 in sample. We are not doing as well on test data as on training data (somewhat to be expected).

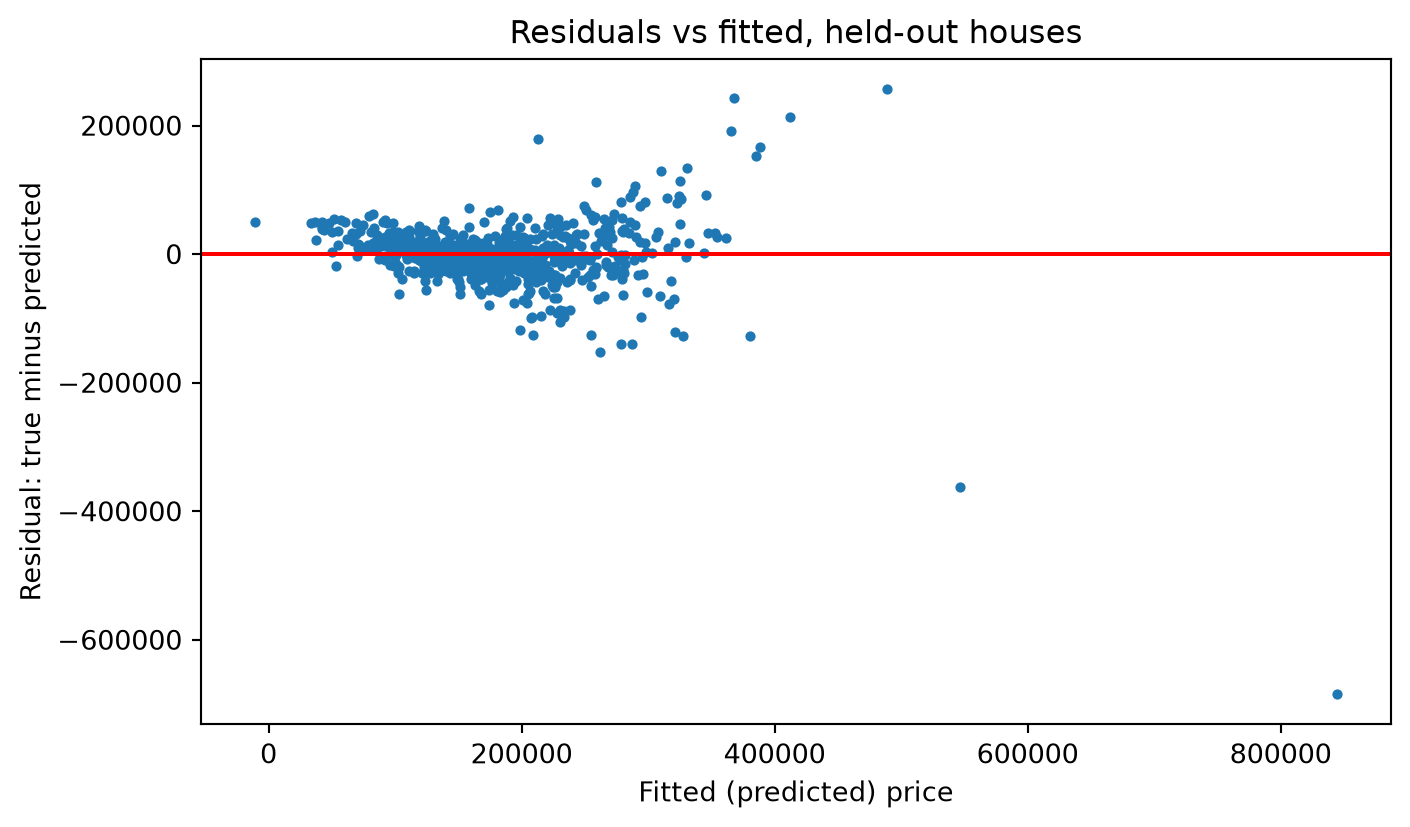

Ames: look at the residuals
\(R^2\) compresses the fit into one number; the residuals \(\mathbf{e} = \mathbf{y} - \hat{\mathbf{y}}\) show where the model is wrong. Plot them against the fitted values, again for the held-out houses:
