Indicates that a node is, on average, close to all other nodes in the network.
This means it can quickly interact with or reach other nodes.
Nodes with high closeness centrality are often considered central or influential because they can efficiently spread information or resources throughout the network.
Small Closeness Centrality:
Indicates that a node is, on average, farther away from all other nodes in the network.
These nodes are less central and may take longer to interact with or reach other nodes.
Nodes with low closeness centrality are often on the periphery of the network and are less influential in terms of spreading information or resources.
Code

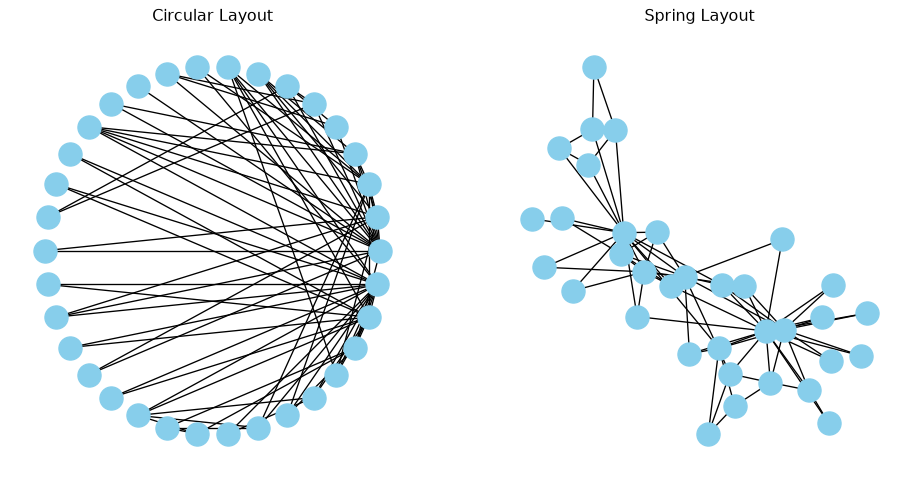

# Assuming Gk is already defined as a graph# Calculate closeness centralitycent =list(nx.closeness_centrality(Gk).values())# Set random seed for reproducibilitynp.random.seed(9)# Create figure and subplotsfig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 5))# Draw the first subplot with circular layoutpos1 = nx.circular_layout(Gk)nodes1 = nx.draw_networkx_nodes(Gk, pos=pos1, ax=ax1, node_color=cent, cmap=plt.cm.plasma)nx.draw_networkx_edges(Gk, pos=pos1, ax=ax1)ax1.set_title('Closeness Centrality')ax1.axis('off')# Draw the second subplot with spring layoutpos2 = nx.spring_layout(Gk)nodes2 = nx.draw_networkx_nodes(Gk, pos=pos2, ax=ax2, node_color=cent, cmap=plt.cm.plasma)nx.draw_networkx_edges(Gk, pos=pos2, ax=ax2)ax2.set_title('Closeness Centrality')ax2.axis('off')# Add colorbar to the figurecbar = fig.colorbar(nodes1, ax=[ax1, ax2], orientation='horizontal', fraction=0.05, pad=0.05)cbar.set_label('Closeness Centrality')# Show the plotplt.show()

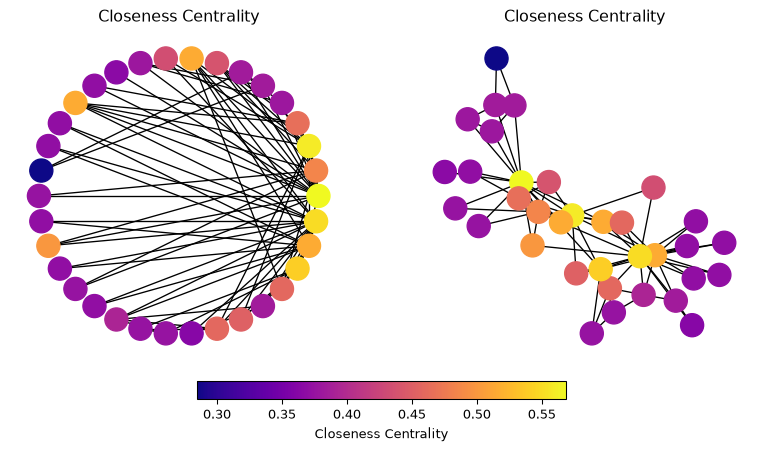

In this graph, most nodes are close to most other nodes.
However we can see that some nodes are slightly more central than others.
Distribution of Closeness Centrality
Code
plt.figure(figsize = (6, 4))plt.hist(cent, bins=np.linspace(0, 1, 30))plt.xlabel('Closeness Centrality', size =14)plt.ylabel('Number of Nodes', size =14)plt.title('Distribution of Closeness Centrality', size =16)plt.show()

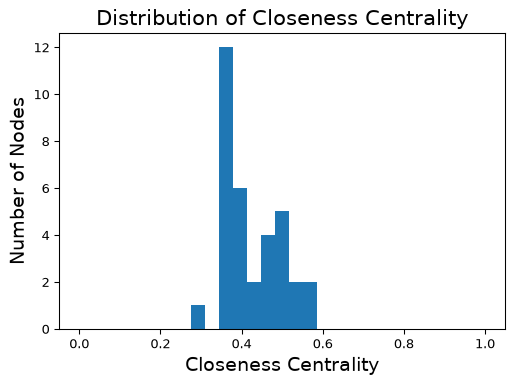

Higher closeness centrality means closer to all other nodes.
Betweenness Centrality
Alternatively we might be interested in the question, is the node on many paths?
Betweenness captures how important a node is to the communication process, or how much information passes through the node.
First, let’s consider the case in which there is only one shortest path between any pair of nodes.
Then, the betweenness centrality of node \(i\) is the number of shortest paths that pass through \(i\).
Mathematically we have
\[
\text{betweenness}(i) = \sum_{i \neq j \neq k \in V}
\begin{cases}
1 &\text{if path from }j\text{ to }k\text{ goes through }i, \\
0 &\text{otherwise}.
\end{cases}
\]
For a graph with \(n\) nodes, we can normalize this to a value between 0 and 1 by dividing by \({n \choose 2} = n(n-1)/2\).
General Case: Dependency
In a general graph, there may be multiple shortest paths between \(j\) and \(k\).
To handle this, we define:
\(\sigma(i \mid j,k)\) is the number of shortest paths between \(j\) and \(k\) that pass through \(i\), and
\(\sigma(j,k)\) is the total number of shortest paths between \(j\) and \(k\).
Then we define the dependency of \(i\) on the paths between \(j\) and \(k\) as the ratio of those two quantities:
Note that many nodes will have a betweenness centrality of zero – no shortest paths go through them.
Code
# Create the graphGk = nx.karate_club_graph()# Calculate betweenness centralitycent =list(nx.betweenness_centrality(Gk).values())# Set random seed for reproducibilitynp.random.seed(9)# Create figure and subplotsfig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 5))# Draw the first subplot with circular layoutpos1 = nx.circular_layout(Gk)nodes1 = nx.draw_networkx_nodes(Gk, pos=pos1, ax=ax1, node_color=cent, cmap=plt.cm.plasma)nx.draw_networkx_edges(Gk, pos=pos1, ax=ax1)ax1.set_title('Betweenness Centrality')ax1.axis('off')# Draw the second subplot with spring layoutpos2 = nx.spring_layout(Gk)nodes2 = nx.draw_networkx_nodes(Gk, pos=pos2, ax=ax2, node_color=cent, cmap=plt.cm.plasma)nx.draw_networkx_edges(Gk, pos=pos2, ax=ax2)ax2.set_title('Betweenness Centrality')ax2.axis('off')# Add colorbar to the figurecbar = fig.colorbar(nodes1, ax=[ax1, ax2], orientation='horizontal', fraction=0.05, pad=0.05)cbar.set_label('Betweenness Centrality')# Show the plotplt.show()

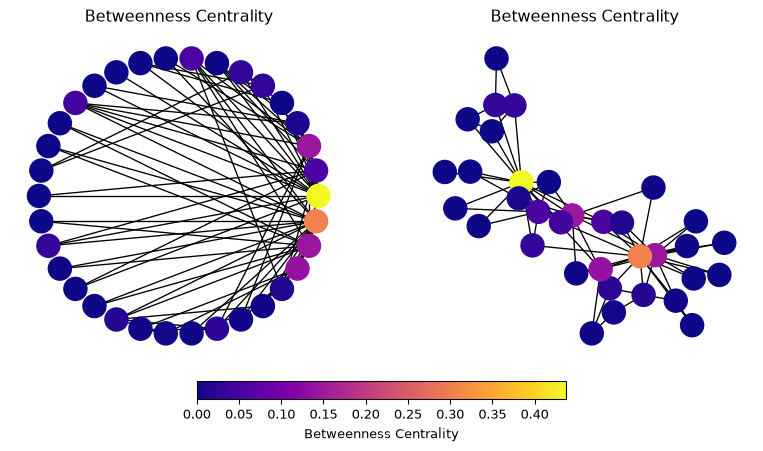

We start to see with this metric the importance of two or three key members of the karate club.
Distribution of Betweenness
Code

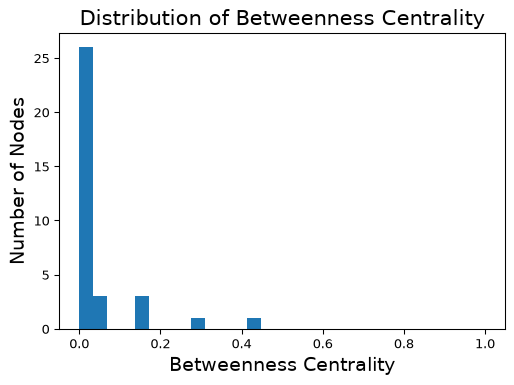

plt.figure(figsize = (6, 4))plt.hist(cent, bins=np.linspace(0, 1, 30))plt.xlabel('Betweenness Centrality', size =14)plt.ylabel('Number of Nodes', size =14)plt.title('Distribution of Betweenness Centrality', size =16)plt.show()
The higher the betweenness centrality of a node, the more it is on many shortest paths.

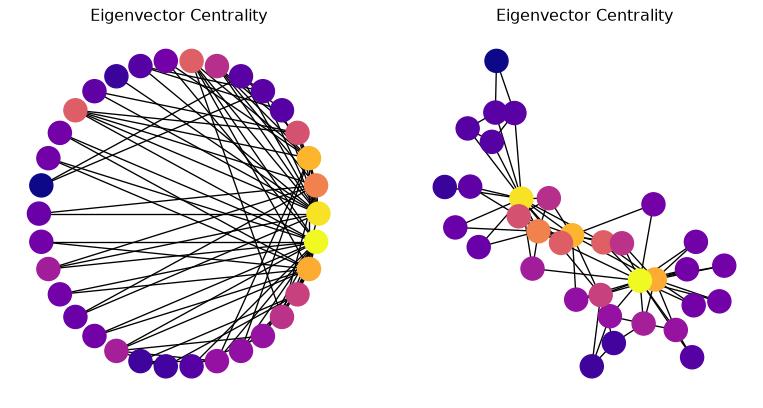

Eigenvector Centrality
Eigenvector centrality is a measure used in network analysis to determine the influence of a node within a network.
The centrality score of a node is proportional to the sum of the centrality scores of its neighbors.
The main idea of eigenvector (or status) centrality is that high status nodes are connected to high status nodes.
We calculate this with some matrix algebra.
Adjacency Matrices

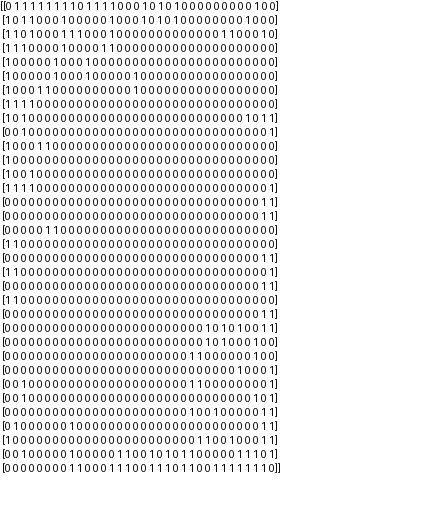

First, represent the graphs by its adjacency matrix.
Given an \(n\)-node undirected graph \(G = (V, E)\), the adjacency matrix \(A\) is defined as
\(x_i\) is called the eigenvector centrality of node \(i\).
\(\lambda\) is a constant (which we’ll show is an eigenvalue).
Put another way, the importance of node \(i\) is proportional to the sum of the importance of the other nodes \(j\) directly connected to \(i\).
Matrix Form
In matrix form, this can be written as
\[
\mathbf{Ax} = \lambda \mathbf{x},
\]
where \(\mathbf{x}\) is the eigenvector corresponding to the the eigenvalue \(\lambda\) of the adjacency matrix \(\mathbf{A}\).
The eigenvector \(\mathbf{x}\) gives the centrality scores for all nodes in the network.
In general, there may be multiple eigenvalues \(\lambda\) for which the above equation holds.
In practice, the largest eigenvalue is used because it captures the most significant mode of influence propagation in the network.
Geometric Intuition
Eigenvector as a direction:
The eigenvector is a direction in the network space. Applying the adjacency matrix (representing connections between nodes) to this vector, stretches the vector along that direction. The amount of stretch is determined by the eigenvalue.
High centrality, high stretch:
A node with a large eigenvector centrality corresponds to an eigenvector that experiences a large stretch when transformed by the adjacency matrix. This indicates that it is connected to many other nodes that are also considered high-status.
No direction change:
The eigenvector doesn’t change its direction when transformed, only its magnitude. This means that a node with a high eigenvector centrality remains relatively central even when considering its connections to other central nodes.

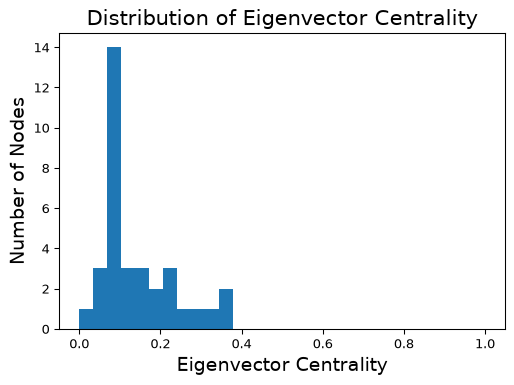

Key Points on Eigenvector Centrality
Eigenvector: The vector \(\mathbf{x}\) represents the centrality scores.
Largest Eigenvalue: The centrality scores are derived from the eigenvector corresponding to the largest eigenvalue of the adjacency matrix.
Perron-Frobenius Theorem: For a connected graph, the largest eigenvalue is positive. In addition, there is only 1 corresponding eigenvector with all positive entries.
The Perron-Frobenius Theorem is an important theoretical tool when working with adjacency matrices, which are by definition nonnegative and positive.

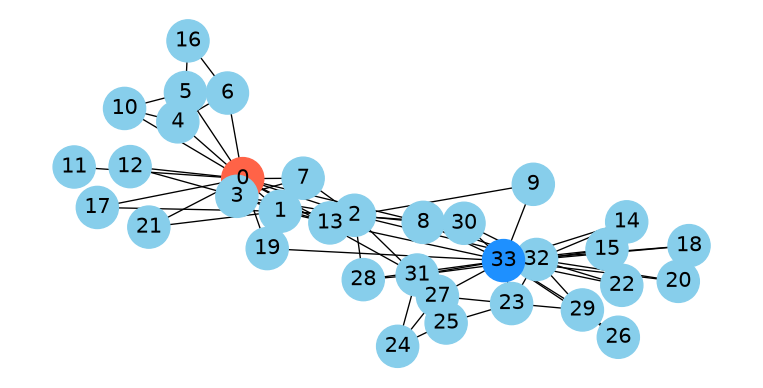

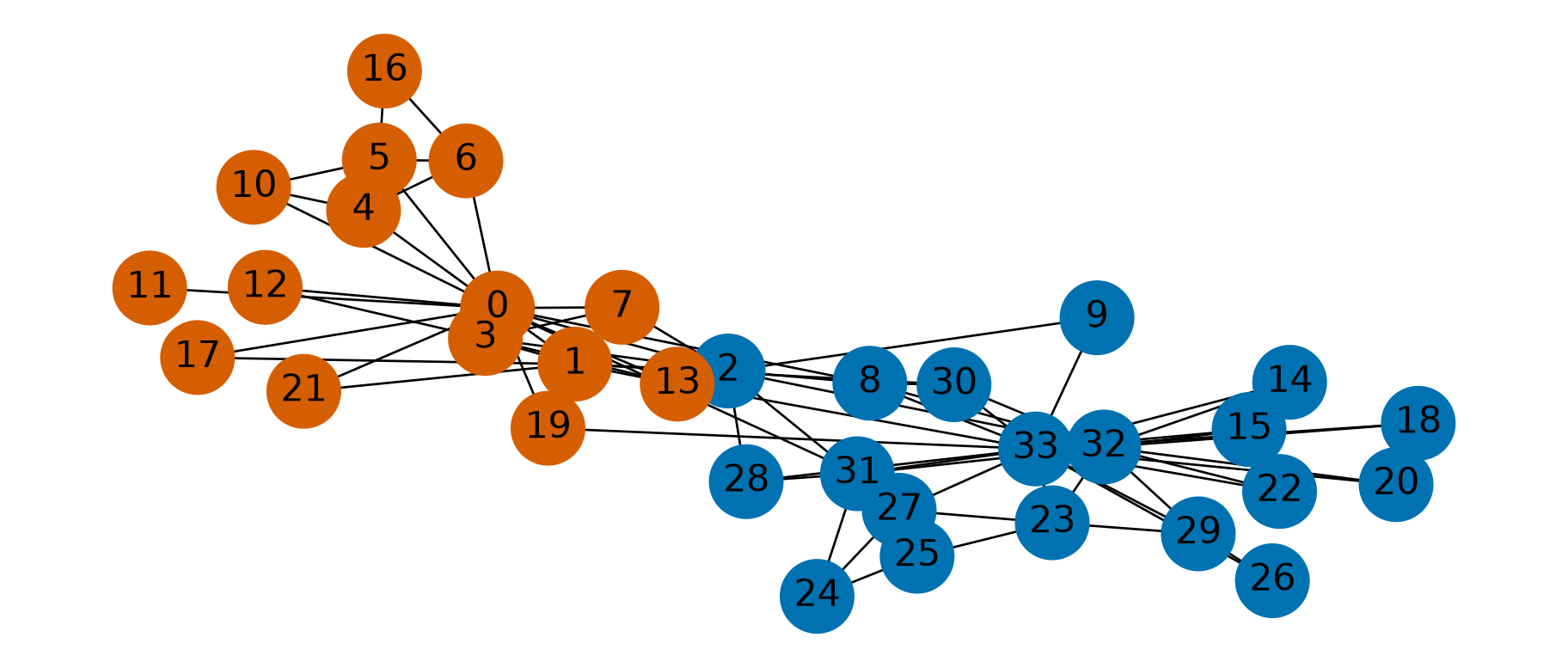

As mentioned, when Wayne Zachary studied the club, a conflict arose between the instructor and the president (nodes 0 and 33, respectively).
Zachary predicted the way the club would split based on an \(s\)-\(t\) min cut between the president and the instructor.
In fact, he correctly predicted every single member’s eventual association except for node 8.
Code
Gcopy = G.copy()Gcopy.remove_edges_from(cut_edges)cc = nx.connected_components(Gcopy)node_set = {node: i for i, s inenumerate(cc) for node in s}colors = ['dodgerblue', 'tomato']node_colors = [colors[node_set[v]-1] for v in G.nodes()]fig = plt.figure(figsize=(12, 5))nx.draw_networkx(G, node_color=node_colors, pos=pos, with_labels='True', node_size=1000, font_size=16)plt.axis('off')plt.show()

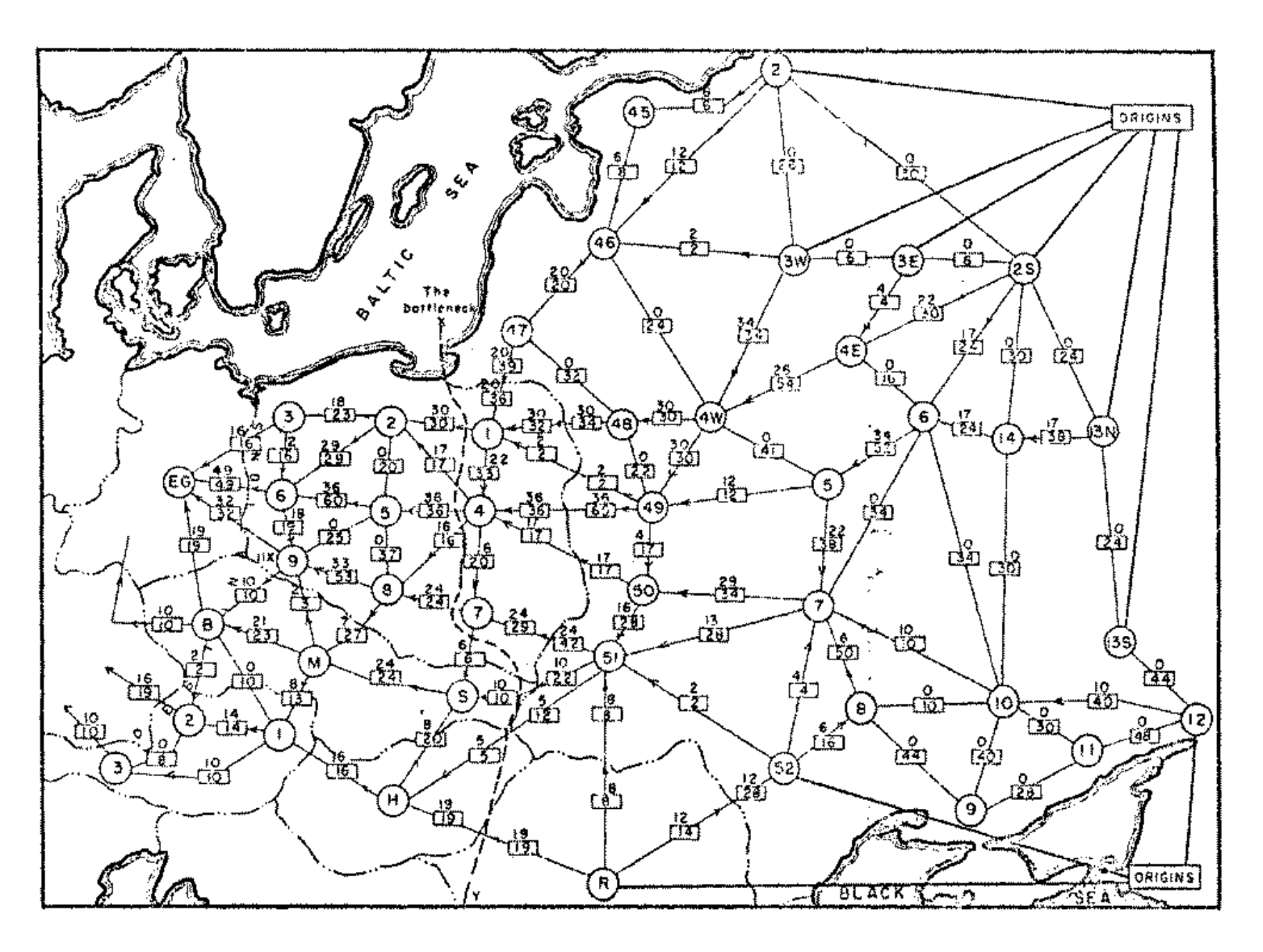

Minimum Cuts
In partitioning a graph, we may not have any particular \(s\) and \(t\) in mind.
Rather, we may want to simply find the minimal way to disconnect the graph.
Clearly, we can do this using an \(s\)-\(t\) min cut, by simply trying all \(s\) and \(t\) pairs.
Let’s try this approach of finding the minimum \(s-t\) cut over all possibilities in the karate club graph.
Code

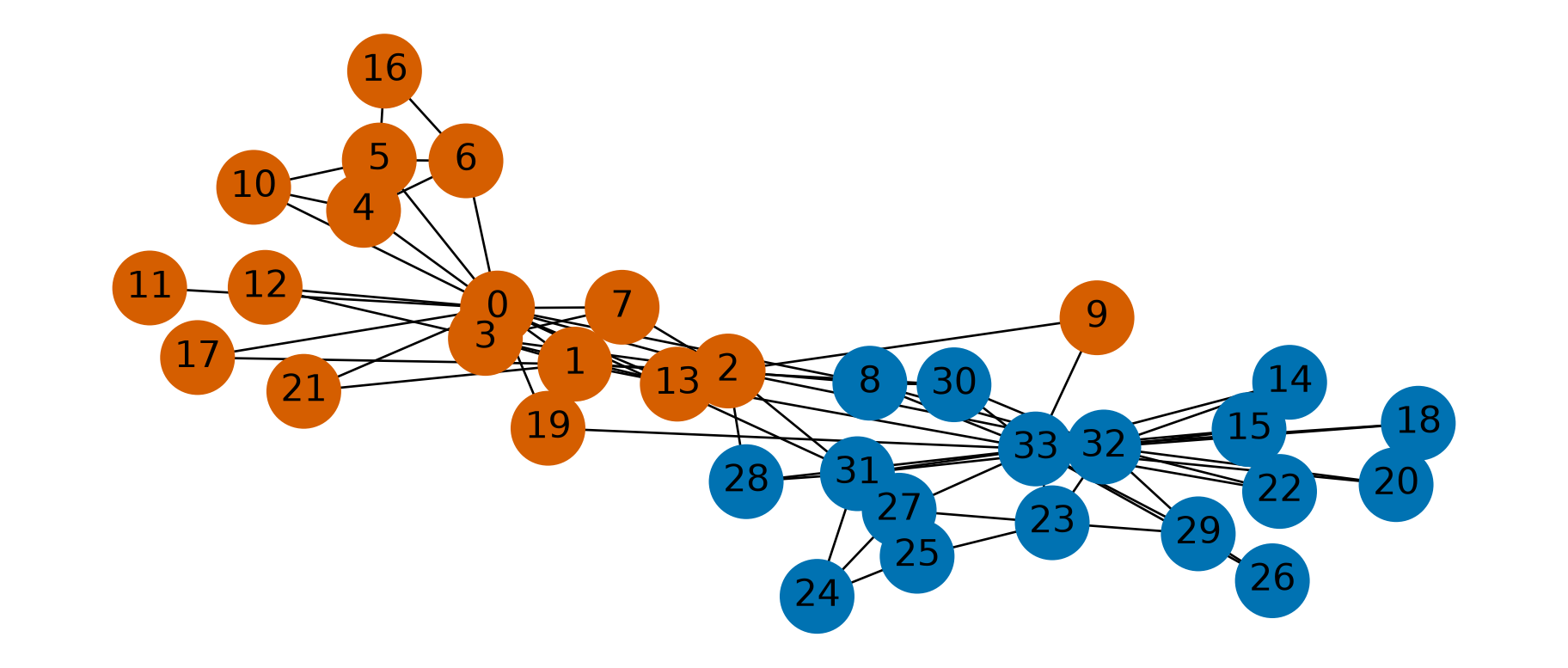

Gcopy = G.copy()Gcopy.remove_edges_from(nx.minimum_edge_cut(G))cc = nx.connected_components(Gcopy)node_set = {node: i for i, s inenumerate(cc) for node in s}#colors = ['tomato', 'dodgerblue']node_colors = [colors[node_set[v]] for v in G]fig = plt.figure(figsize=(12,5))nx.draw_networkx(G, node_color=node_colors, pos=pos, with_labels='True', node_size=1000, font_size=16)plt.axis('off')plt.show()
This is in fact the minimum cut. Node 11 only has one edge to the rest of the graph, so the min cut is 1.
As this example shows, minimum cut is not, in general, a good approach for clustering or partitioning.
To get a more useful partition, we need to define a new goal. The new goal will be to find a balanced cut.
Balanced Cuts
The idea to avoid the problem above is to normalize the cut by the size of the smaller of the two components. The problem above would be avoided because the smaller of the two cuts is just a single node.

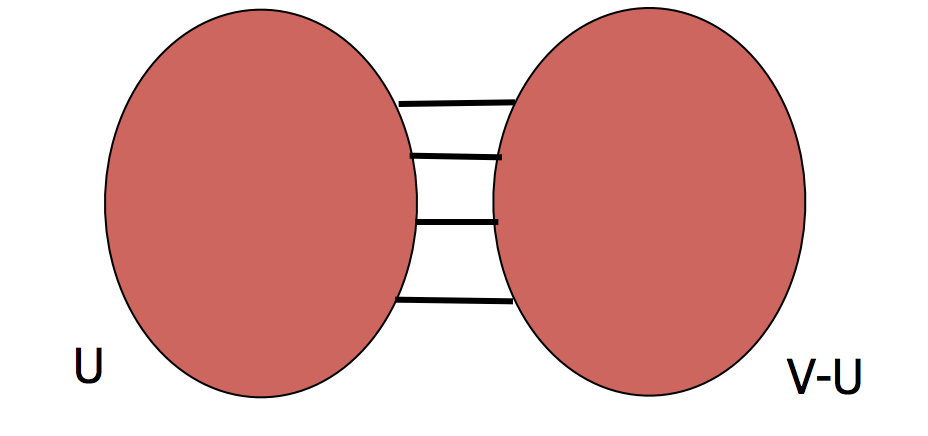

where \(E(U, V\setminus U)\) is the number of edges between the two parts.
The idea is that finding \(\alpha(G)\) gives a balanced cut – one that maximizes the number of disconnected nodes per edge removed.
Unfortunately, this is a challenging problem that is not computable in polynomial time.
However, we can make good approximations, which we’ll look at now.
To do so, we’ll introduce spectral graph theory.
Spectral Graph Theory
Spectral graph theory is the use of linear algebra to study the properties of graphs.
To introduce spectral graph theory, we define some terms.
Let \(G\) be an undirected graph with \(n\) nodes. We define the \(n\times n\) matrix \(D\) as a diagonal matrix of node degrees, i.e., \(D = \text{diag}(d_1, d_2, d_3, \dots)\) where \(d_i\) is the degree of node \(i\).
Assuming \(G\) has adjacency matrix \(A\), we define the Laplacian of \(G\) as
\[
L = D - A.
\]
Where the matrix has positive entries on the diagonal and negative, symmetric entries off the diagonal.
Below we show the Laplacian matrix \(L\) for the karate club network as a heatmap.
Code
L = nx.laplacian_matrix(nx.karate_club_graph()).todense()plt.figure(figsize = (6, 6))sns.heatmap(L, cmap = plt.cm.tab20)plt.axis('equal')plt.axis('off')plt.show()
Laplacian Matrix Interpretation
Now let us think about an \(n\)-component vector \(\mathbf{x} \in \mathbb{R}^n\) as an assignment of values to nodes in the graph \(G\).
For example, \(\mathbf{x}\) could encode node importance or strength or even a more concrete notion like temperature or altitude.
Laplacian Quadratic Form
Here is an amazing fact about the Laplacian of \(G\).
We constrain \(\mathbf{x}\) to have a nonzero norm (e.g. \(\Vert \mathbf{x}\Vert = 1\)), otherwise \(\mathbf{x} = \mathbf{0}\) would be a trivial solution.
We can express this in terms of the graph Laplacian:
Note that \(\mathbf{x} \perp {\mathbf 1}\) means that the sum of the entries in \(\mathbf{x}\) is zero, which implies that \(\mathbf{x}\) is mean-centered.
Fiedler Vector
The corresponding eigenvector to \(\lambda_2\) is called the Fiedler vector.
If we think of \(x_i\) as a 1-D coordinate for node \(i\) in the graph, then choosing \(\mathbf{x} = \mathbf{w}_2\) (the eigenvector corresponding to \(\lambda_2\)) puts each node in a position that minimizes the sum of the squared stretching of each edge.

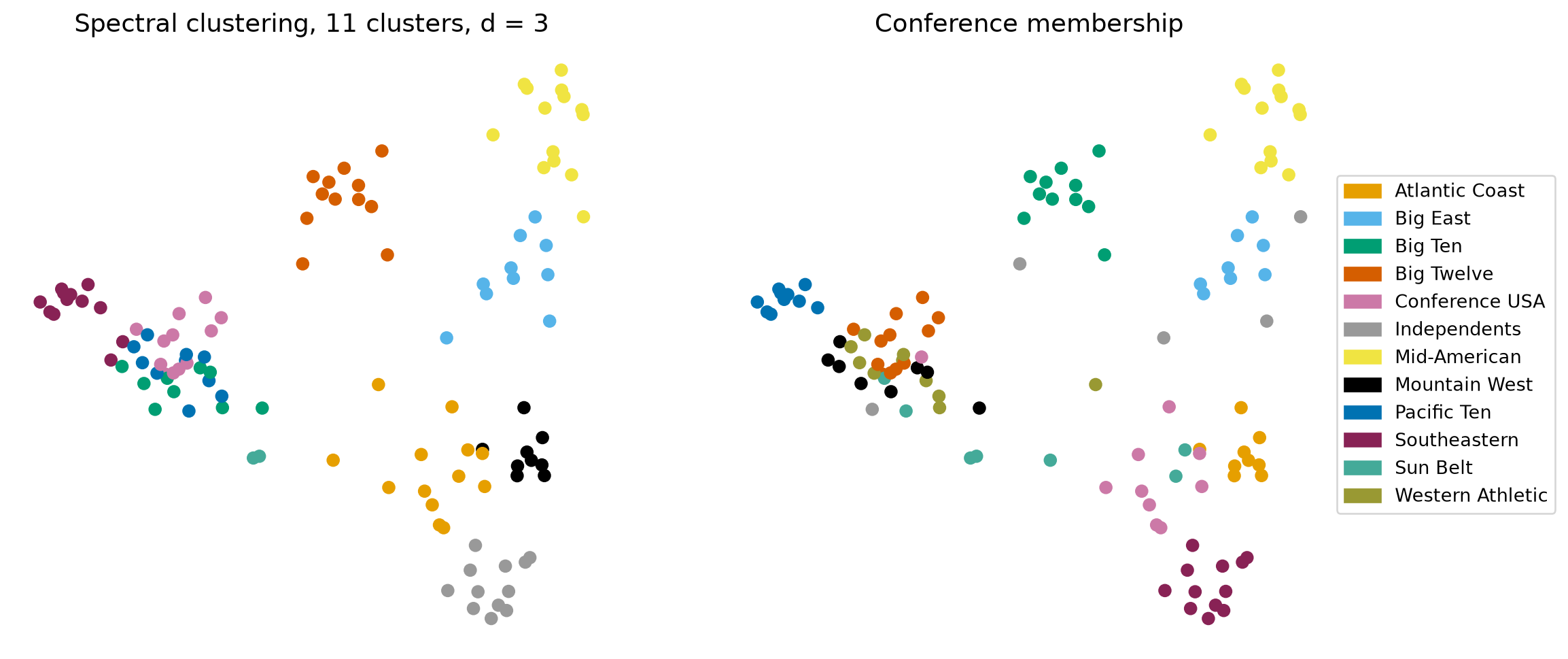

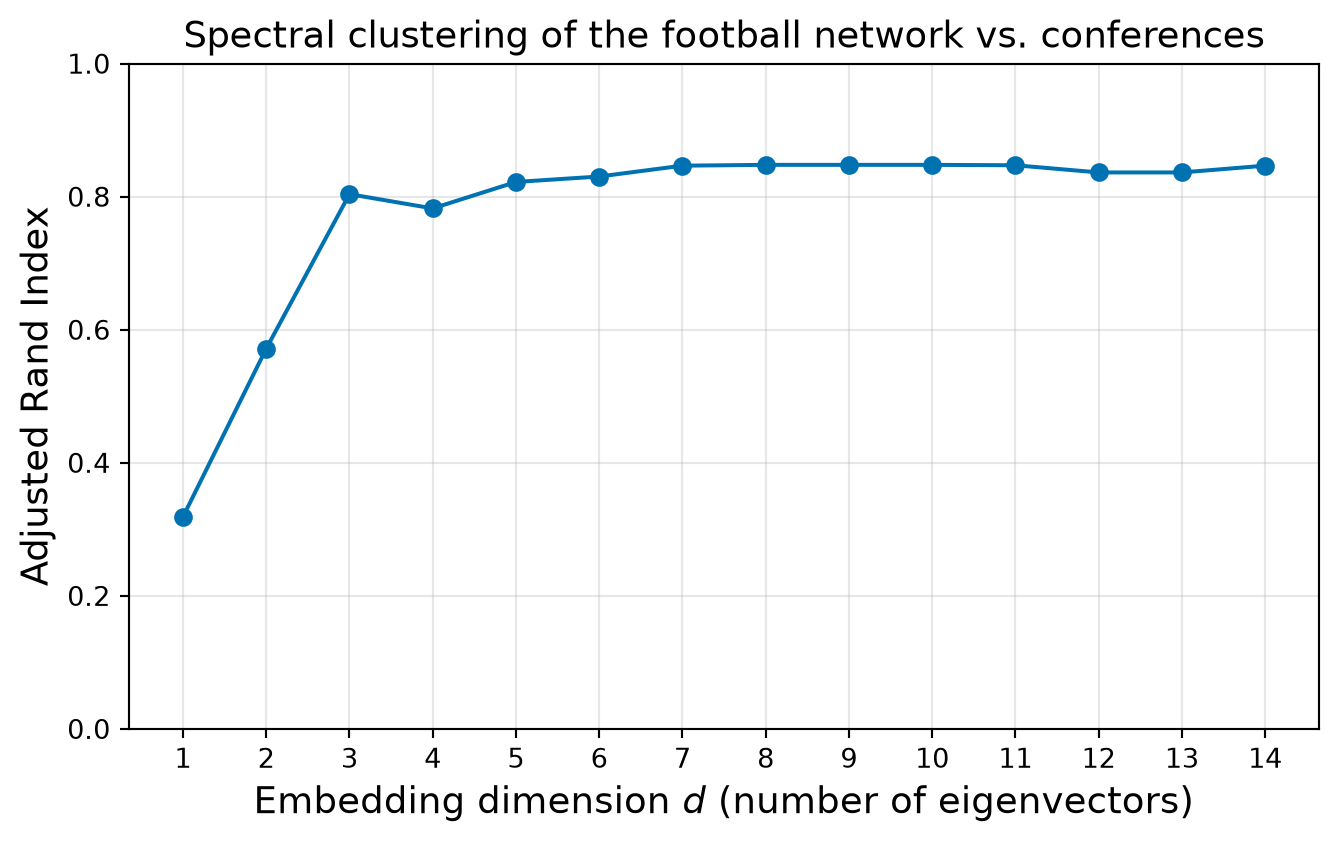

Spectral Partitioning
This leads to key ideas in node partitioning.
The basic idea is to partition nodes according to the Fiedler vector \(\mathbf{w}_2\).
This can be shown to have provably good performance for the balanced cut problem.
There are a number of options for how to split based on the Fiedler vector.
If \(\mathbf{w}_2\) is the Fiedler vector, then split nodes according to a value \(s\):
bisection: \(s\) is the median value in \(\mathbf{w}_2\)
sign: separate positive and negative vaues (\(s = 0\))
gap: separate according to the largest gap in the values of \(\mathbf{w}_2\)
ratio cut: \(s\) is the value that maximizes \(\alpha\)
Example: Bisection Method
Consider a graph with 8 nodes where the Fiedler vector has values (sorted for convenience):
