Recap: SVD and Low-Rank Approximation

DS701 Session 15 — Mon Oct 26, 2026

Today’s plan

  • 5 min — knowledge-check review
  • 20 min — highlights and Q&A (answer or pass — answering always earns credit)
  • 45 min — case study: compressing a trail-camera network’s photos
  • wrap-up and cold-call check-ins

Knowledge-Check Review

KC 1: The three factors, and the sum of rank-1 pieces

Write down the singular value decomposition of a matrix \(A \in \mathbb{R}^{m\times n}\) (with \(m > n\)) and say, for each of the three factors, what it contains and what its shape is. Then write the same decomposition as a sum of rank-1 matrices, and say what a singular value \(\sigma_i\) tells you in that form.

KC 2: Full rank, low effective rank

The Abilene traffic matrix is \(1008 \times 121\) and has rank 121 — it is full rank — yet the lecture says it has low effective rank and that a rank-20 approximation is within 9% of it. Explain what “low effective rank” means, how the plot of singular values* reveals it, and how the formula \(\lVert A - A^{(k)}\rVert_F^2 = \sum_{i>k}\sigma_i^2\) lets you read the approximation error off that plot without ever forming \(A^{(k)}\).*

KC 3: Twenty numbers per person

In the Netflix example the ratings matrix is \(500{,}000\) users \(\times\) \(18{,}000\) movies, and the winning approach modelled it as having rank 20–40. Using the factorization \(A^{(k)} \approx \tilde U \tilde V\) with \(\tilde U \in \mathbb{R}^{m\times k}\) and \(\tilde V \in \mathbb{R}^{k\times n}\), explain what a row of \(\tilde U\) and a column of \(\tilde V\) represent, how a single rating is computed from them, and why this is a simplification* of the data in Occam’s sense — one that could predict a rating the user never gave.*

Highlights

One factorization, three ways to read it

\[A = U\Sigma V^T, \qquad A\mathbf{v}_i = \sigma_i \mathbf{u}_i\]

  • As matrices — orthonormal \(U\) (left singular vectors), diagonal \(\Sigma\) (singular values, sorted, \(\ge 0\)), orthonormal \(V\) (right singular vectors).
  • As a map — \(A\) sends each \(\mathbf{v}_i\) to \(\mathbf{u}_i\), stretched by \(\sigma_i\); the \(\mathbf{v}_i\) beyond the rank go to zero.
  • As a sum — \(A = \sum_i \sigma_i \mathbf{u}_i\mathbf{v}_i^T\): rank-1 layers, weighted by \(\sigma_i\), heaviest first.

Always exists; the \(\sigma_i\) are unique, the vectors unique up to sign. np.linalg.svd(A, full_matrices=False) returns U, s, Vt — note the transpose and that s is a vector.

Rank, eigenvalues, singular values

Three facts from the lecture’s “Where do \(U\), \(\Sigma\), \(V\) come from?” that you will verify numerically today:

  • Rank = number of linearly independent columns = number of non-zero singular values. Full rank means \(\min(m,n)\) of them; on a computer, count those above a small tolerance.
  • Eigen ↔︎ singular. \(A^TA = V\Sigma^T\Sigma V^T\) is symmetric, so its eigenvectors are the \(\mathbf{v}_i\) and its eigenvalues are \(\sigma_i^2\) (likewise \(AA^T\) with the \(\mathbf{u}_i\)). Singular values are the square roots of the eigenvalues of \(A^TA\) — never negative, and defined for rectangular \(A\), which eigenvalues are not.
  • Storage. A rank-\(k\) matrix factors as \(A = CR\) with \(C\) being \(m\times k\) and \(R\) being \(k \times n\): \(k(m+n)\) numbers instead of \(mn\). Worth it when \(k < mn/(m+n)\).

Next lecture uses exactly this: PCA is the eigendecomposition of the covariance \(X^TX\) — i.e. the SVD of the centred data.

The spectrum is an importance ranking

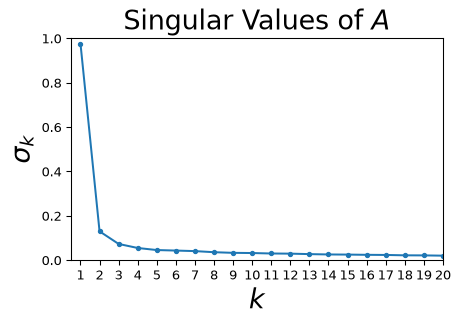

Traffic matrix, \(1008\times121\), rank 121.

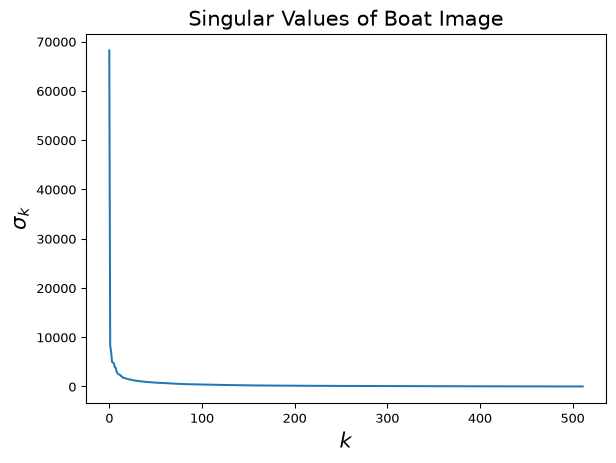

Boat photo, \(512\times512\), rank 512 (log scale: \(\sigma_1\) is \(8\times\) \(\sigma_2\)).

Both are full rank; both have a sharp elbow. Everything after the elbow is a rank-1 layer with a tiny weight — the matrix is close to rank 5, or 40: low effective rank. Occam’s razor, measured: a few hidden patterns carry most of the data.

Eckart–Young: the best rank-\(k\) approximation

Distance between matrices: Frobenius, \(\lVert A - B\rVert_F = \sqrt{\sum_{ij}(a_{ij}-b_{ij})^2}\) — Euclidean distance in \(\mathbb{R}^{mn}\).

  • \(A^{(k)} = \arg\min_{\operatorname{rank} B = k} \lVert A - B\rVert_F\) is the truncated SVD: first \(k\) columns of \(U\) and \(V\), top-left \(k\times k\) of \(\Sigma\).
  • Its error is exactly the tail: \(\lVert A - A^{(k)}\rVert_F^2 = \sum_{i=k+1}^{n}\sigma_i^2\).
  • Best among all rank-\(k\) matrices — however cleverly built — and for every \(k\) from one decomposition.

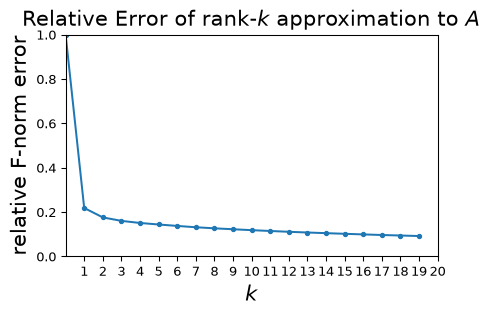

Relative error read straight off the singular values: 9% at \(k=20\).

Layers of a photograph

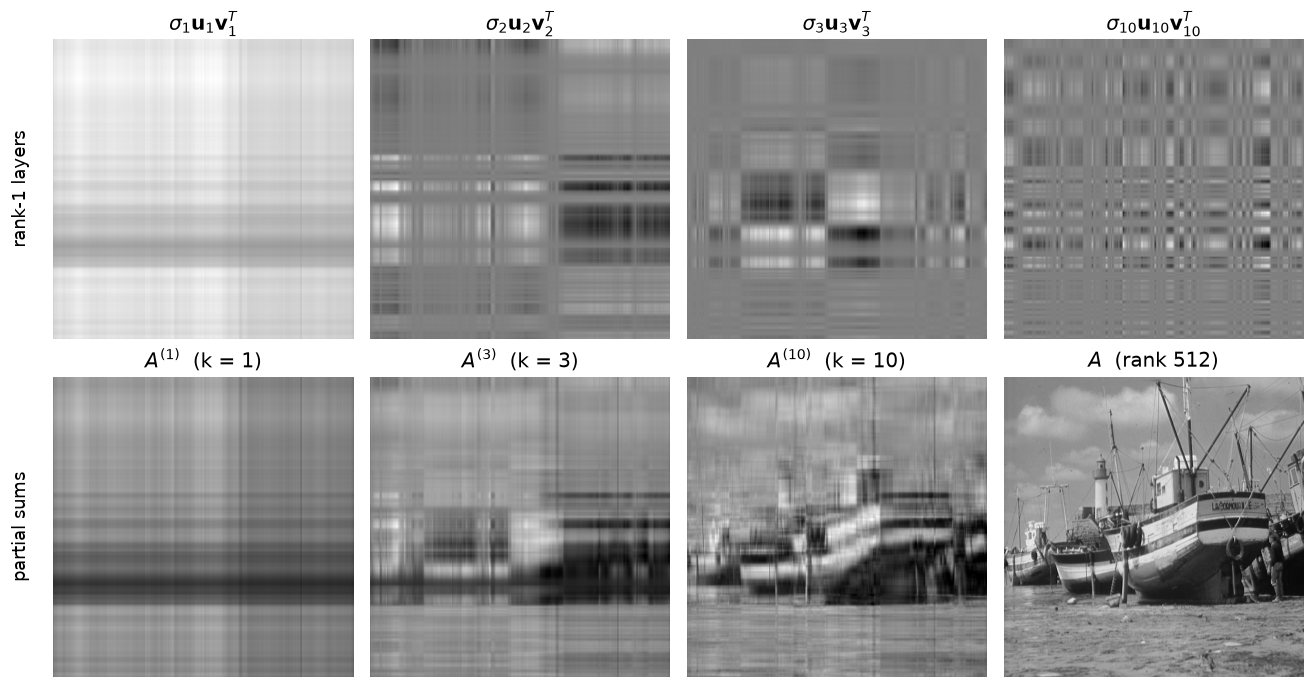

Top row: individual rank-1 layers \(\sigma_i\mathbf{u}_i\mathbf{v}_i^T\) — each is a row profile times a column profile. Bottom row: partial sums. Ten layers already give the boats; the remaining 502 add texture. Today you rebuild a photo at \(k = 1, 5, 20, 50\) and put numbers on this.

Compression: what you keep, what you pay

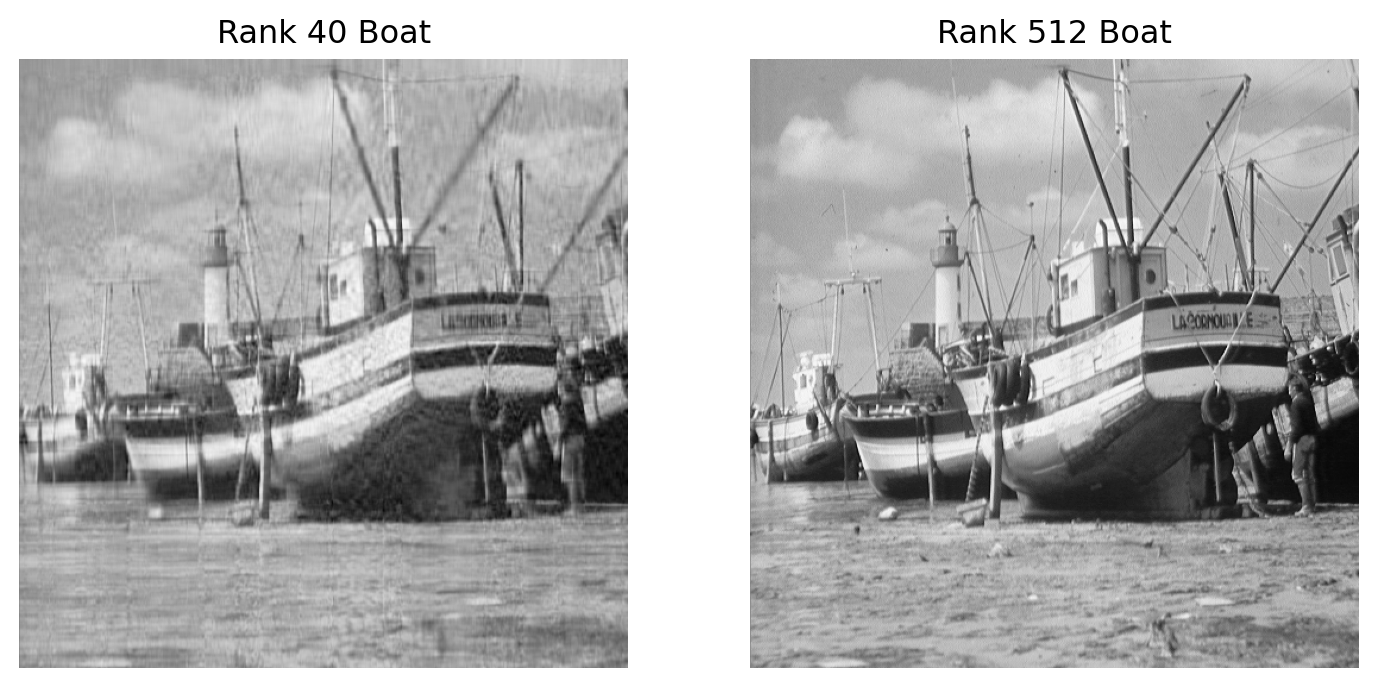

Rank 40 of 512:

  • store \(U'\), \(\Sigma'\), \(V'\): \(40\,(512 + 512 + 1) = 41{,}000\) numbers vs \(262{,}144\) — a 6.4× compression;
  • relative Frobenius error \(\approx 8\%\);
  • what is lost: the layers with the smallest weights — fine texture, low-contrast detail.

Same arithmetic for the traffic matrix: \(20\,(1008+121)\) vs \(1008\cdot121\) — 81% smaller, 9% error.

Two readings of a low-rank matrix

Common patterns — columns of \(U\).

\(\mathbf{a}_j \approx \sum_{i\le k} \sigma_i v_{ij}\mathbf{u}_i\) (\(v_{ij}\) = entry \(j\) of \(\mathbf{v}_i\)): every column of the data is a mix of the same \(k\) patterns; \(\mathbf{u}_1\) is the strongest one (traffic: the daily rhythm shared by all 121 traces).

Latent factors — rows of \(U\Sigma\) and columns of \(V^T\).

\(a_{ij} = \tilde U_{i,:}\cdot \tilde V_{:,j}\): user \(i\) and item \(j\) are both points in \(\mathbb{R}^k\), and the entry is their inner product. Netflix: \(k \approx 20\).

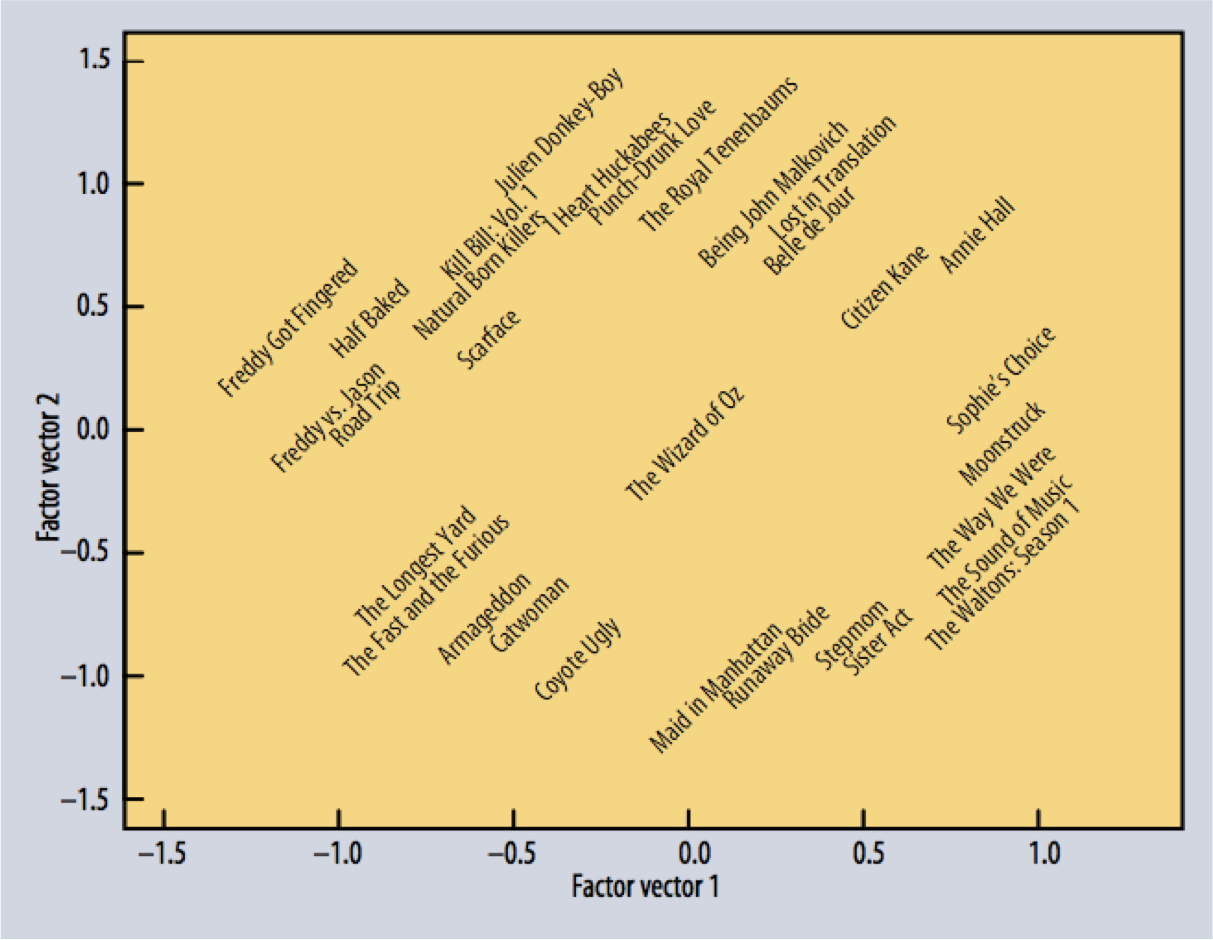

Movies placed by their two strongest latent factors — nobody typed in genres. Source: Koren et al., IEEE Computer, 2009.

Where the SVD goes from here

matrix what the SVD gives session
compression / denoising image, traffic \(A^{(k)}\): fewest numbers for a given error today
PCA centred data \(X\) (\(n\) samples \(\times\) \(d\) features) \(\mathbf{v}_i\) = principal directions, \(\sigma_i^2/(n-1)\) = variance explained 15
recommenders users \(\times\) items, mostly missing rows of \(U\Sigma\) / columns of \(V^T\) = latent tastes; fill the blanks 22

Same decomposition, three questions. Row three is Lecture 19’s: a ratings matrix with planted taste factors, where you check whether rank 2 or rank 30 predicts a rating you hid.

In-Class Activity

Activity — Case Study 12: How Much Can a Trail-Camera Network Compress Its Photos?

Goal: an environmental nonprofit uploads wildlife trail-camera photos over a metered cellular link and asks how far a photo can be compressed before a biologist can no longer identify the animal — and what “rank” means for their budget. On a stand-in frame (a scikit-learn sample photo, not theirs) you take the image apart with np.linalg.svd and rebuild it (Part 1), verify \(\Sigma^2 = \operatorname{eig}(A^TA)\) and rank = number of non-zero singular values (Part 2), rebuild it at rank 1, 5, 20 and 50 (Part 3), price each rank in Frobenius error, energy and compression ratio (Part 4), and check Eckart–Young against two rank-20 competitors (Part 5). You close with a two-sentence memo to the nonprofit: the rank you would set, and the kind of photo it would fail on.

  • Work in groups of 2–3.
  • Parts marked (autograded) are submitted to Gradescope; the rest is participation.
  • Staff will circulate — be ready to explain any part of your work.
  • Dependencies: numpy, pandas, matplotlib, scikit-learn.

The activity notebook goes live on the day of the lecture. Colab is optional — you can also open it on GitHub and run it locally.

Going deeper

Full lecture notes: SVD — Low Rank Approximations
