Neural Networks II: Making Training Work

Introduction

Code
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
from IPython.display import Image, HTML
import warnings
warnings.filterwarnings('ignore')

%matplotlib inline

Last time (Neural Networks I) was about how learning works. Today is deliberately practical: making training work with scikit-learn.

We’ll cover:

  • MLPClassifier and MLPRegressor
  • A classification example (MNIST) and a regression example (California housing)
  • Hyperparameter tuning with grid search
  • Preprocessing, architecture selection, preventing overfitting, choosing a solver
  • Common issues and how to diagnose them

Last Time: How Learning Works

  • Model: an MLP is layers of neurons, \(\mathbf{h}_{k+1} = f(\boldsymbol{\beta}_k + \boldsymbol{\Omega}_k \mathbf{h}_k)\), with a non-linear activation \(f\) (e.g. ReLU)
  • Loss: MSE for regression, cross-entropy for classification; training means minimizing it over the parameters \(\theta\)
  • Gradient descent: \(\theta \leftarrow \theta - \eta \nabla_\theta L\), with learning rate \(\eta\)
  • Backpropagation: the chain rule run backwards over the compute graph gives every \(\partial L / \partial \theta\) at about the cost of one forward pass
  • Stochastic / mini-batch GD: estimate the gradient from a small batch of samples per step

Today: The Knobs

Every one of those ideas shows up as an argument you have to choose:

Concept scikit-learn argument
Layers and neurons hidden_layer_sizes
Activation \(f\) activation
Learning rate \(\eta\) learning_rate_init, learning_rate
Mini-batch size batch_size
Optimizer solver ('adam', 'sgd', 'lbfgs')
Epochs / stopping max_iter, early_stopping, n_iter_no_change
Regularization alpha

The rest of the lecture is about setting these sensibly – and what goes wrong when you don’t.

Neural Networks in Scikit-Learn

MLPClassifier and MLPRegressor

Scikit-learn provides simple, high-level interfaces:

  • MLPClassifier: Multi-layer Perceptron classifier
  • MLPRegressor: Multi-layer Perceptron regressor

Key features:

  • Multiple hidden layers with various activation functions
  • Multiple solvers: 'adam', 'sgd', 'lbfgs'
  • Built-in regularization (L2 penalty)
  • Early stopping support
  • Easy integration with scikit-learn pipelines

Architecture Specification

Specify architecture as a tuple:

# Single hidden layer with 100 neurons
hidden_layer_sizes=(100,)

# Two hidden layers: 100 and 50 neurons
hidden_layer_sizes=(100, 50)

# Three hidden layers
hidden_layer_sizes=(128, 64, 32)

Input and output layers are automatically determined from your data!

Scikit-Learn vs PyTorch/TensorFlow


Use Scikit-Learn for:

  • Small to medium datasets (< 100K samples)
  • Standard feedforward architectures
  • Rapid prototyping needed
  • Integration with scikit-learn pipelines
  • CPU training is sufficient

Use PT/TF for:

  • Large datasets (> 100K samples)
  • Complex architectures (CNNs, RNNs)
  • GPU acceleration required
  • Production deployment
  • Research and experimentation

Classification Example: MNIST

Load the MNIST Dataset

Let’s classify handwritten digits (0-9):

from sklearn.datasets import fetch_openml
from sklearn.model_selection import train_test_split

# Load MNIST data
print("Loading MNIST dataset...")
X, y = fetch_openml('mnist_784', version=1, return_X_y=True,
                    as_frame=False, parser='auto')

# Convert labels to integers
y = y.astype(int)

# Use subset for faster demo
X, _, y, _ = train_test_split(X, y, train_size=10000,
                               stratify=y, random_state=42)

print(f"Dataset shape: {X.shape}")
print(f"Number of classes: {len(np.unique(y))}")
Loading MNIST dataset...
Dataset shape: (10000, 784)
Number of classes: 10

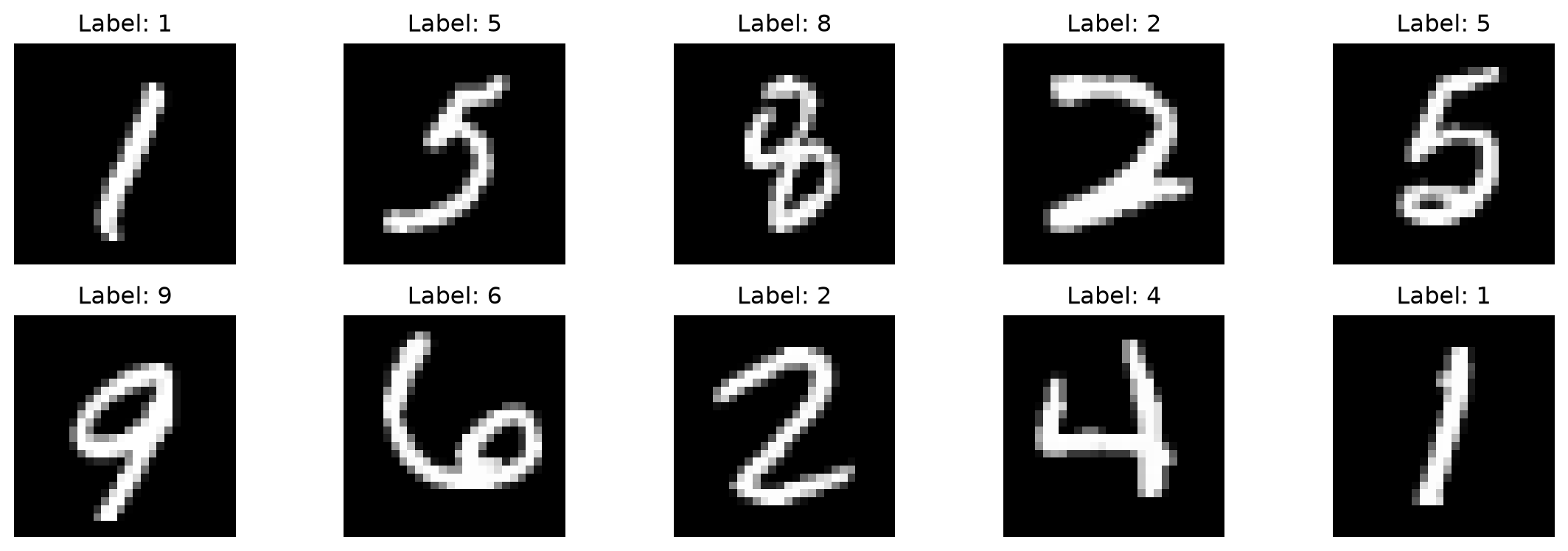

Visualize the Data

Code
fig, axes = plt.subplots(2, 5, figsize=(12, 4))
for i, ax in enumerate(axes.flat):
    ax.imshow(X[i].reshape(28, 28), cmap='gray')
    ax.set_title(f'Label: {y[i]}')
    ax.axis('off')
plt.tight_layout()
plt.show()

Each image is 28×28 pixels = 784 features

Prepare the Data

# Split into training and test sets
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42
)

# Scale features to [0, 1]
X_train_scaled = X_train / 255.0
X_test_scaled = X_test / 255.0

print(f"Training set: {X_train.shape[0]} samples")
print(f"Test set: {X_test.shape[0]} samples")
print(f"Feature range: [{X_train_scaled.min():.2f}, {X_train_scaled.max():.2f}]")
Training set: 8000 samples
Test set: 2000 samples
Feature range: [0.00, 1.00]
Important

Always scale/normalize your features for neural networks! This helps gradient descent converge faster.

Create the MLP

from sklearn.neural_network import MLPClassifier

# Create MLP with 2 hidden layers
mlp = MLPClassifier(
    hidden_layer_sizes=(128, 64),  # Architecture
    activation='relu',              # Activation function
    solver='adam',                  # Optimizer (uses mini-batches)
    alpha=0.0001,                   # L2 regularization
    batch_size=64,                  # Mini-batch size
    learning_rate_init=0.001,       # Initial learning rate
    max_iter=20,                    # Number of epochs
    random_state=42,
    verbose=True                    # Show progress
)

Train the model

print("Training MLP...")
mlp.fit(X_train_scaled, y_train)
print(f"Training completed in {mlp.n_iter_} iterations")
Training MLP...
Iteration 1, loss = 0.71345206
Iteration 2, loss = 0.26439384
Iteration 3, loss = 0.18880844
Iteration 4, loss = 0.14070827
Iteration 5, loss = 0.10813206
Iteration 6, loss = 0.08241134
Iteration 7, loss = 0.06312883
Iteration 8, loss = 0.04742022
Iteration 9, loss = 0.03751731
Iteration 10, loss = 0.02680532
Iteration 11, loss = 0.02321482
Iteration 12, loss = 0.01516949
Iteration 13, loss = 0.01235069
Iteration 14, loss = 0.00823132
Iteration 15, loss = 0.00665425
Iteration 16, loss = 0.00515634
Iteration 17, loss = 0.00431783
Iteration 18, loss = 0.00336489
Iteration 19, loss = 0.00283319
Iteration 20, loss = 0.00253876
Training completed in 20 iterations

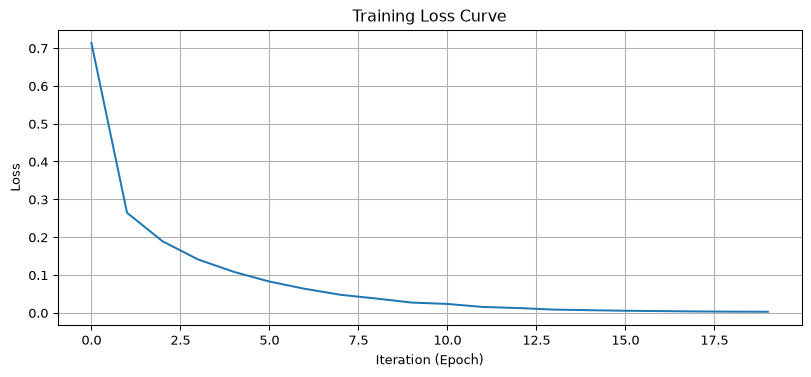

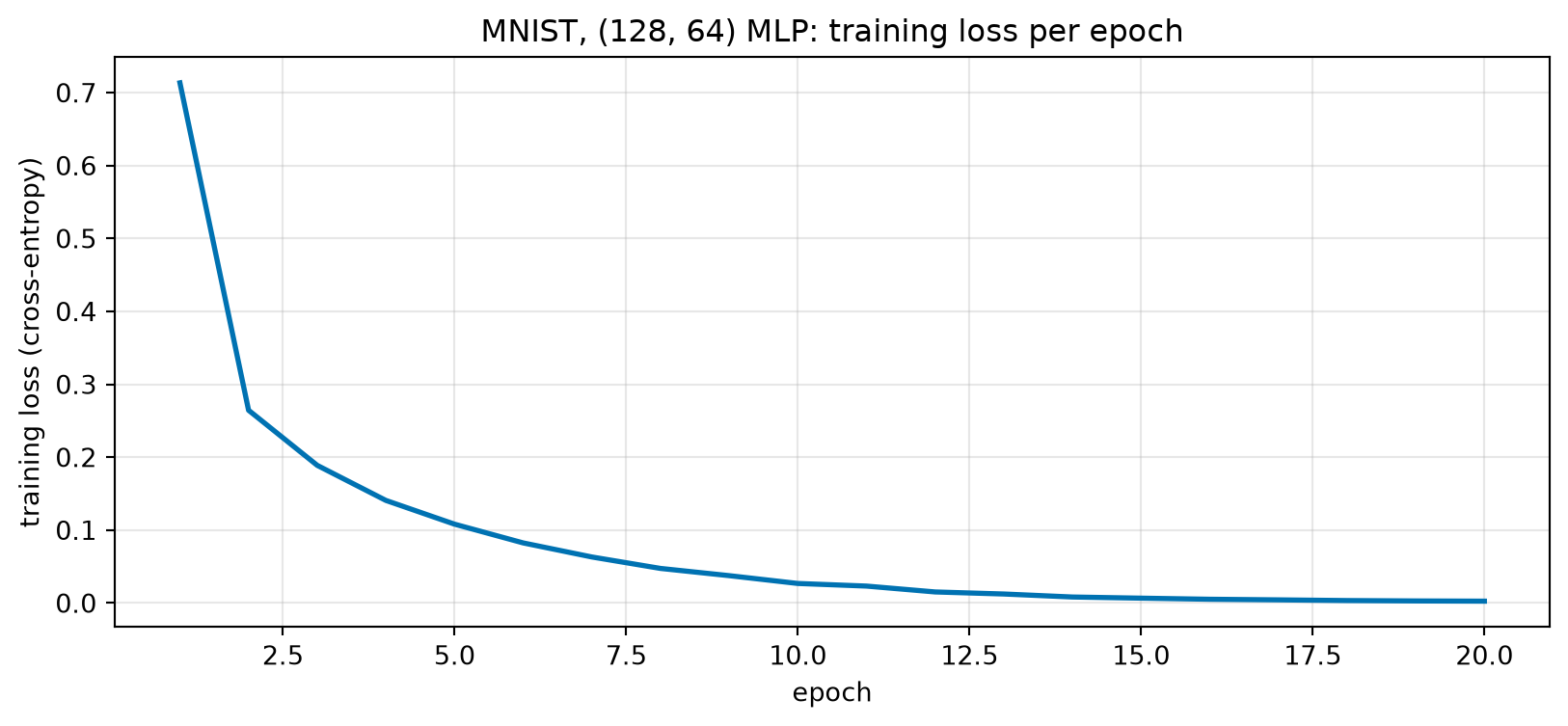

Training Loss Curve

Code
plt.figure(figsize=(10, 4))
plt.plot(mlp.loss_curve_)
plt.xlabel('Iteration (Epoch)')
plt.ylabel('Loss')
plt.title('Training Loss Curve')
plt.grid(True)
plt.show()

The loss decreases smoothly—our model is learning.

Evaluate Performance

Code
from sklearn.metrics import accuracy_score, classification_report

# Make predictions
y_pred = mlp.predict(X_test_scaled)

# Calculate accuracy
accuracy = accuracy_score(y_test, y_pred)
print(f"Test Accuracy: {accuracy:.4f}")

# Detailed report
print("\nClassification Report:")
print(classification_report(y_test, y_pred))
Test Accuracy: 0.9555

Classification Report:
              precision    recall  f1-score   support

           0       0.95      0.99      0.97       191
           1       0.98      1.00      0.99       226
           2       0.94      0.96      0.95       215
           3       0.95      0.93      0.94       202
           4       0.98      0.94      0.96       206
           5       0.96      0.94      0.95       168
           6       0.98      0.97      0.98       196
           7       0.93      0.96      0.95       185
           8       0.96      0.95      0.95       206
           9       0.91      0.91      0.91       205

    accuracy                           0.96      2000
   macro avg       0.96      0.96      0.96      2000
weighted avg       0.96      0.96      0.96      2000

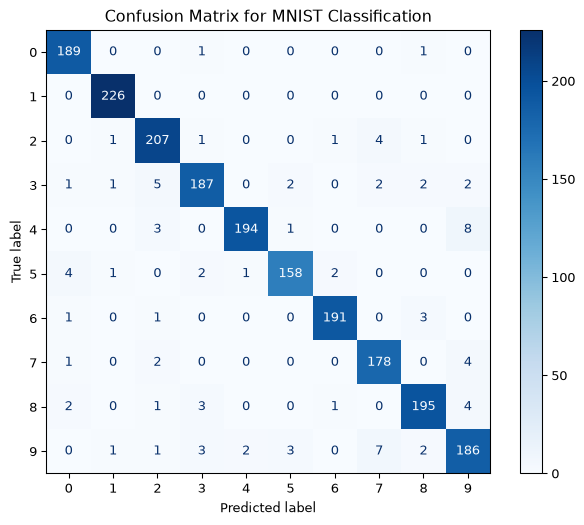

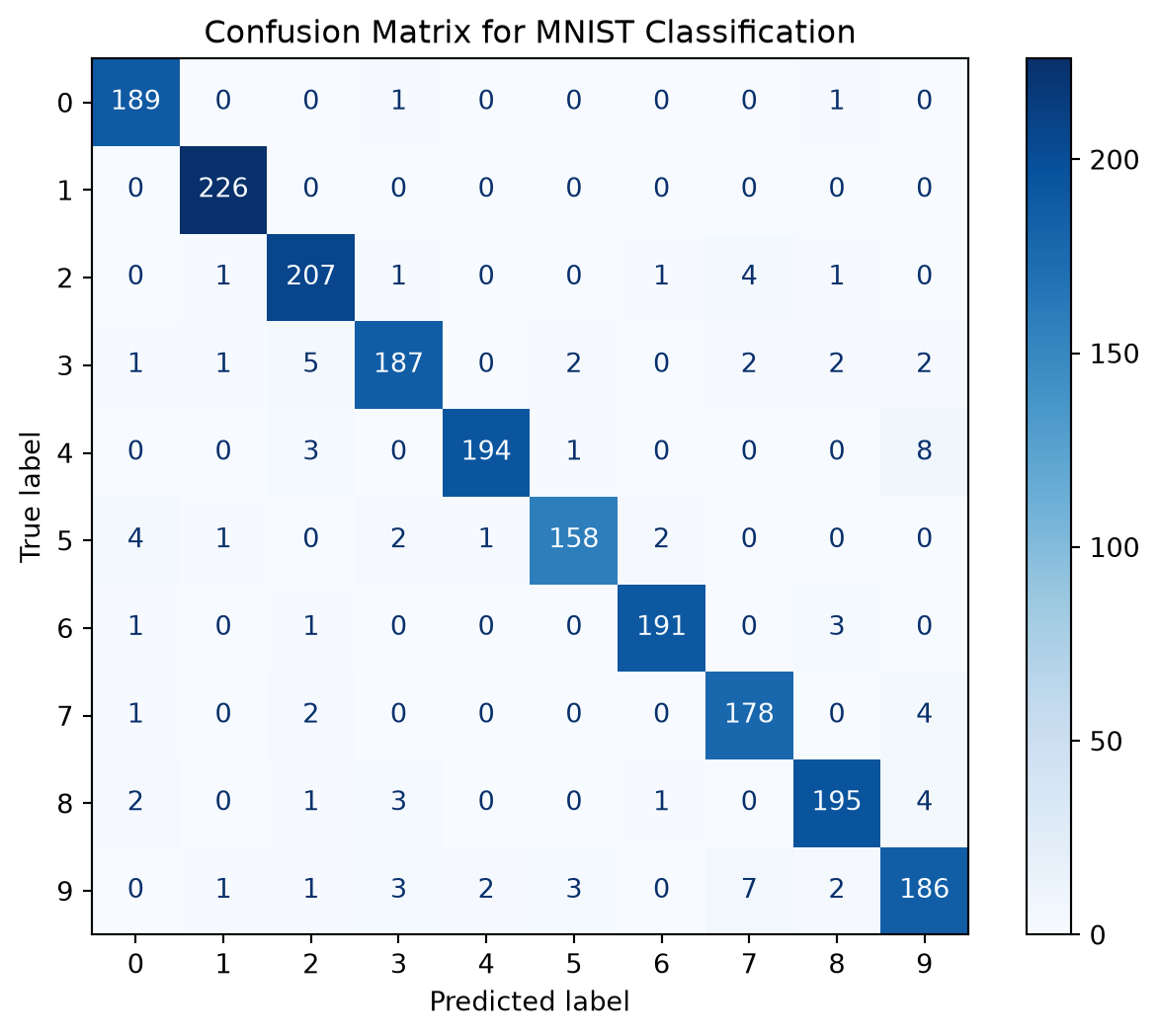

Confusion Matrix

Code
from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay

fig, ax = plt.subplots(figsize=(8, 6))
cm = confusion_matrix(y_test, y_pred)
disp = ConfusionMatrixDisplay(confusion_matrix=cm, display_labels=mlp.classes_)
disp.plot(ax=ax, cmap='Blues', values_format='d')
plt.title('Confusion Matrix for MNIST Classification')
plt.show()

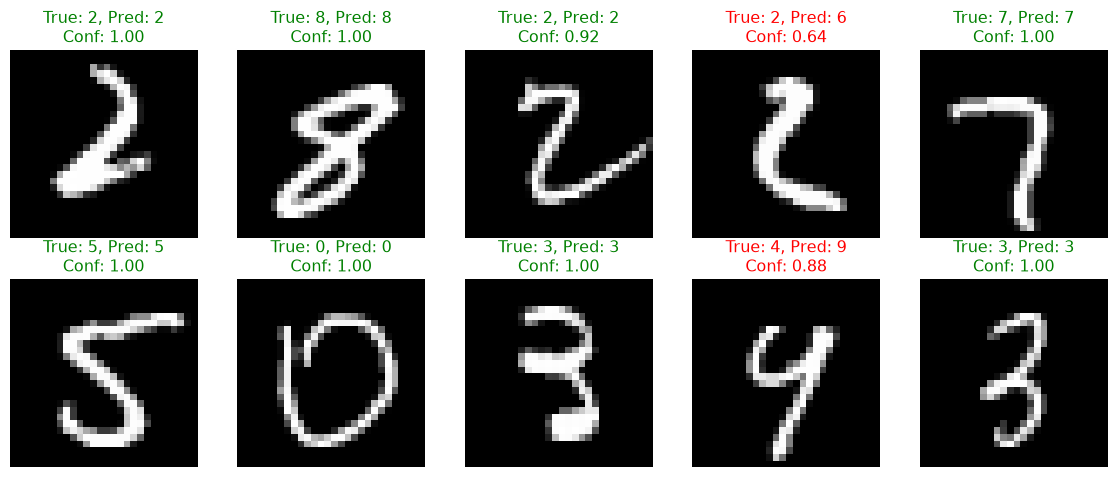

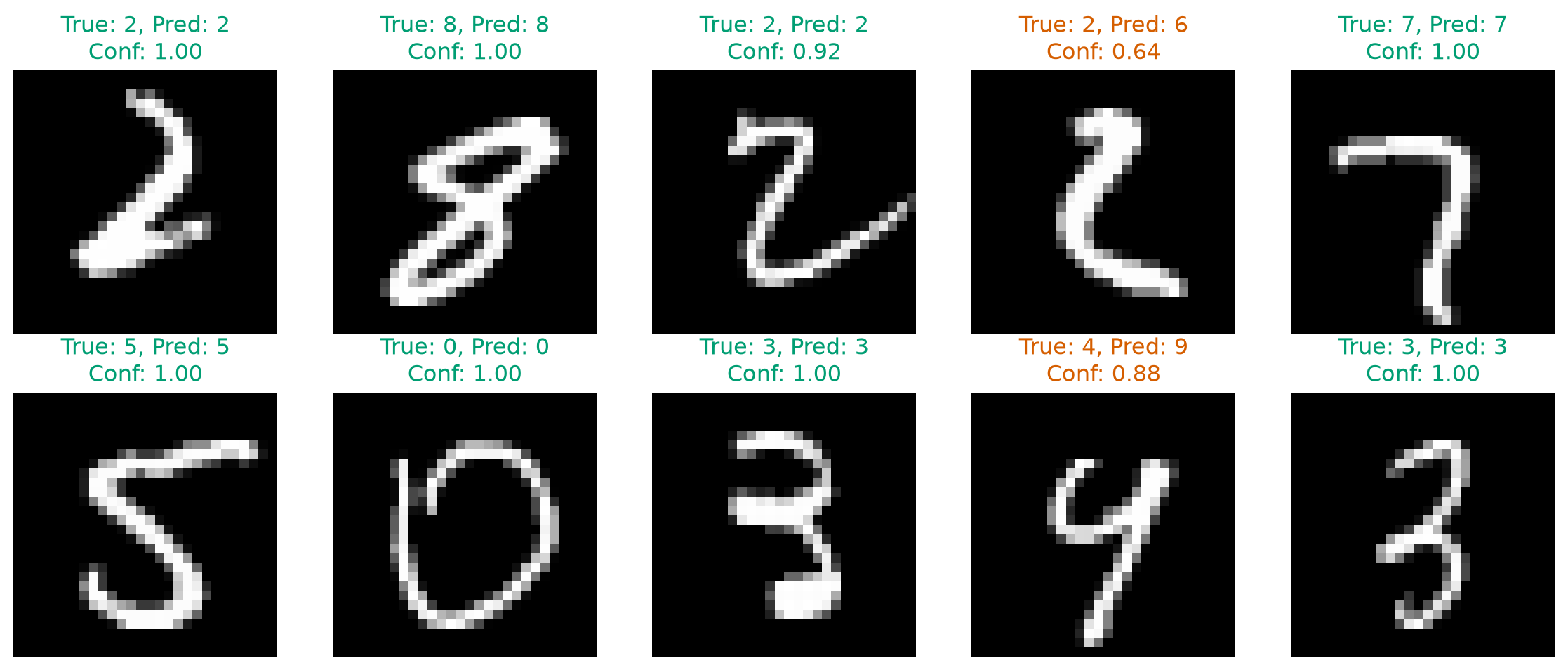

Visualize Predictions

Code
# Get prediction probabilities
y_pred_proba = mlp.predict_proba(X_test_scaled)

fig, axes = plt.subplots(2, 5, figsize=(12, 5))
for i, ax in enumerate(axes.flat):
    ax.imshow(X_test[i].reshape(28, 28), cmap='gray')
    pred_label = y_pred[i]
    true_label = y_test[i]
    confidence = y_pred_proba[i].max()

    color = 'green' if pred_label == true_label else 'red'
    ax.set_title(f'True: {true_label}, Pred: {pred_label}\nConf: {confidence:.2f}',
                 color=color)
    ax.axis('off')
plt.tight_layout()
plt.show()

Regression Example

California Housing Dataset

Let’s predict house prices using MLP regression:

from sklearn.datasets import fetch_california_housing
from sklearn.preprocessing import StandardScaler
from sklearn.neural_network import MLPRegressor

# Load housing data
housing = fetch_california_housing()
X_housing = housing.data
y_housing = housing.target

print(f"Dataset shape: {X_housing.shape}")
print(f"Features: {housing.feature_names}")
Dataset shape: (20640, 8)
Features: ['MedInc', 'HouseAge', 'AveRooms', 'AveBedrms', 'Population', 'AveOccup', 'Latitude', 'Longitude']

Target: Median house value (in $100,000s)

Prepare Data and Define Model

# Split and scale
X_train_h, X_test_h, y_train_h, y_test_h = train_test_split(
    X_housing, y_housing, test_size=0.2, random_state=42
)

scaler = StandardScaler()
X_train_h_scaled = scaler.fit_transform(X_train_h)
X_test_h_scaled = scaler.transform(X_test_h)

# Train MLP Regressor with early stopping
mlp_reg = MLPRegressor(
    hidden_layer_sizes=(100, 50),
    activation='relu',
    solver='adam',
    alpha=0.001,
    batch_size=32,
    max_iter=100,
    early_stopping=True,
    validation_fraction=0.1,
    n_iter_no_change=10,
    random_state=42,
    verbose=False
)

Train the model

print("Training MLP Regressor...")
mlp_reg.fit(X_train_h_scaled, y_train_h)
print(f"Training stopped at iteration: {mlp_reg.n_iter_}")
Training MLP Regressor...
Training stopped at iteration: 76

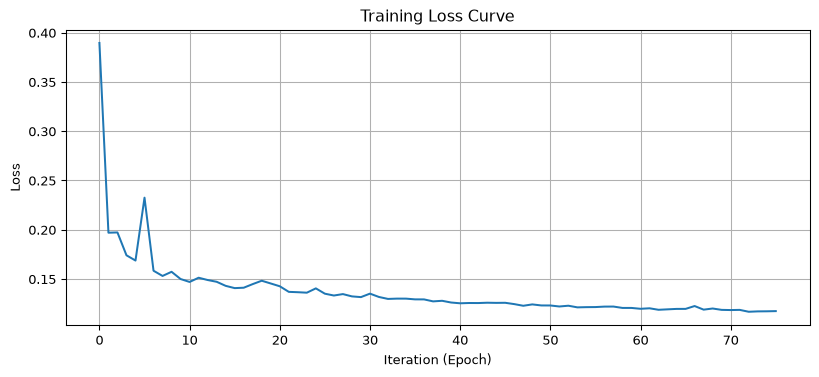

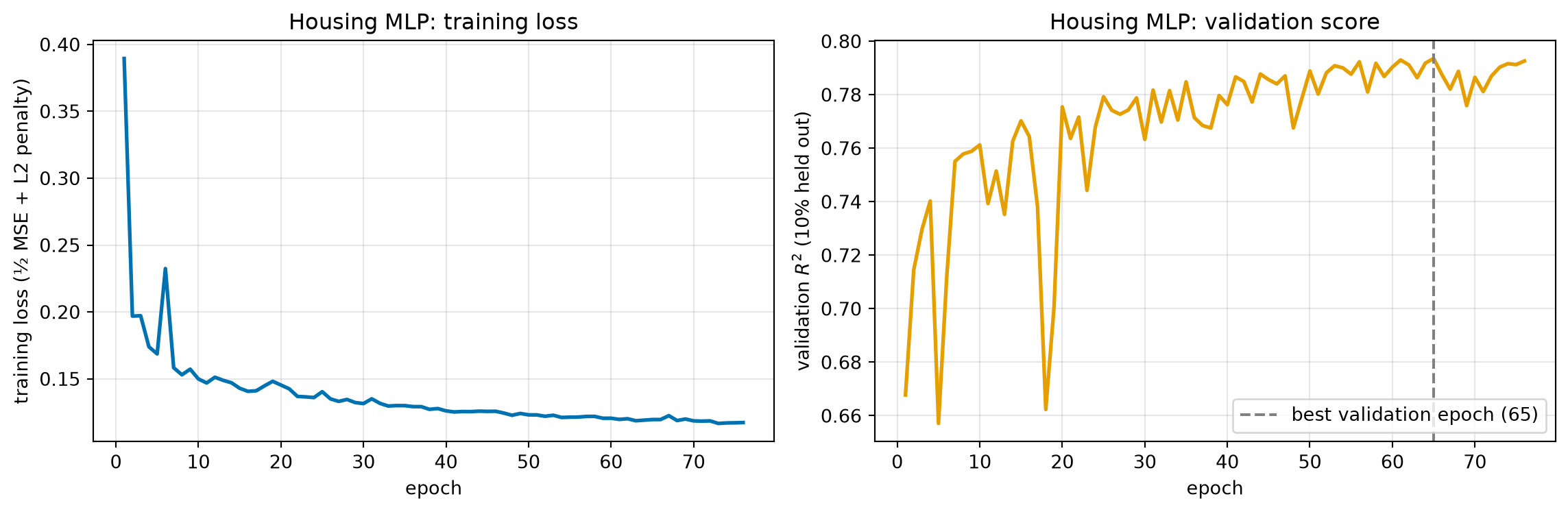

Training Loss Curve

Code
plt.figure(figsize=(10, 4))
plt.plot(mlp_reg.loss_curve_)
plt.xlabel('Iteration (Epoch)')
plt.ylabel('Loss')
plt.title('Training Loss Curve')
plt.grid(True)
plt.show()

Evaluate Regression Model

from sklearn.metrics import mean_squared_error, r2_score, mean_absolute_error

# Make predictions
y_pred_h = mlp_reg.predict(X_test_h_scaled)

# Calculate metrics
mse = mean_squared_error(y_test_h, y_pred_h)
rmse = np.sqrt(mse)
mae = mean_absolute_error(y_test_h, y_pred_h)
r2 = r2_score(y_test_h, y_pred_h)

print(f"Root Mean Squared Error: {rmse:.4f}")
print(f"Mean Absolute Error: {mae:.4f}")
print(f"R² Score: {r2:.4f}")
Root Mean Squared Error: 0.5138
Mean Absolute Error: 0.3460
R² Score: 0.7986

An \(R^2\) of ~0.8 means our model explains 80% of the variance in house prices!

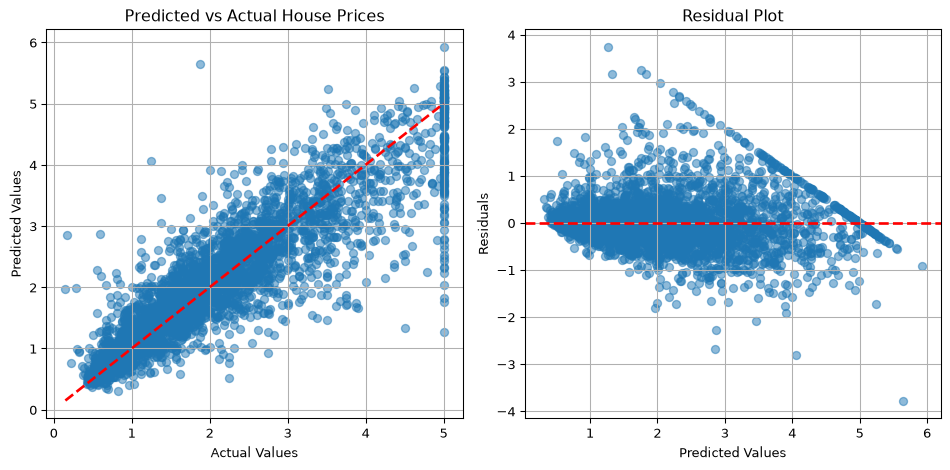

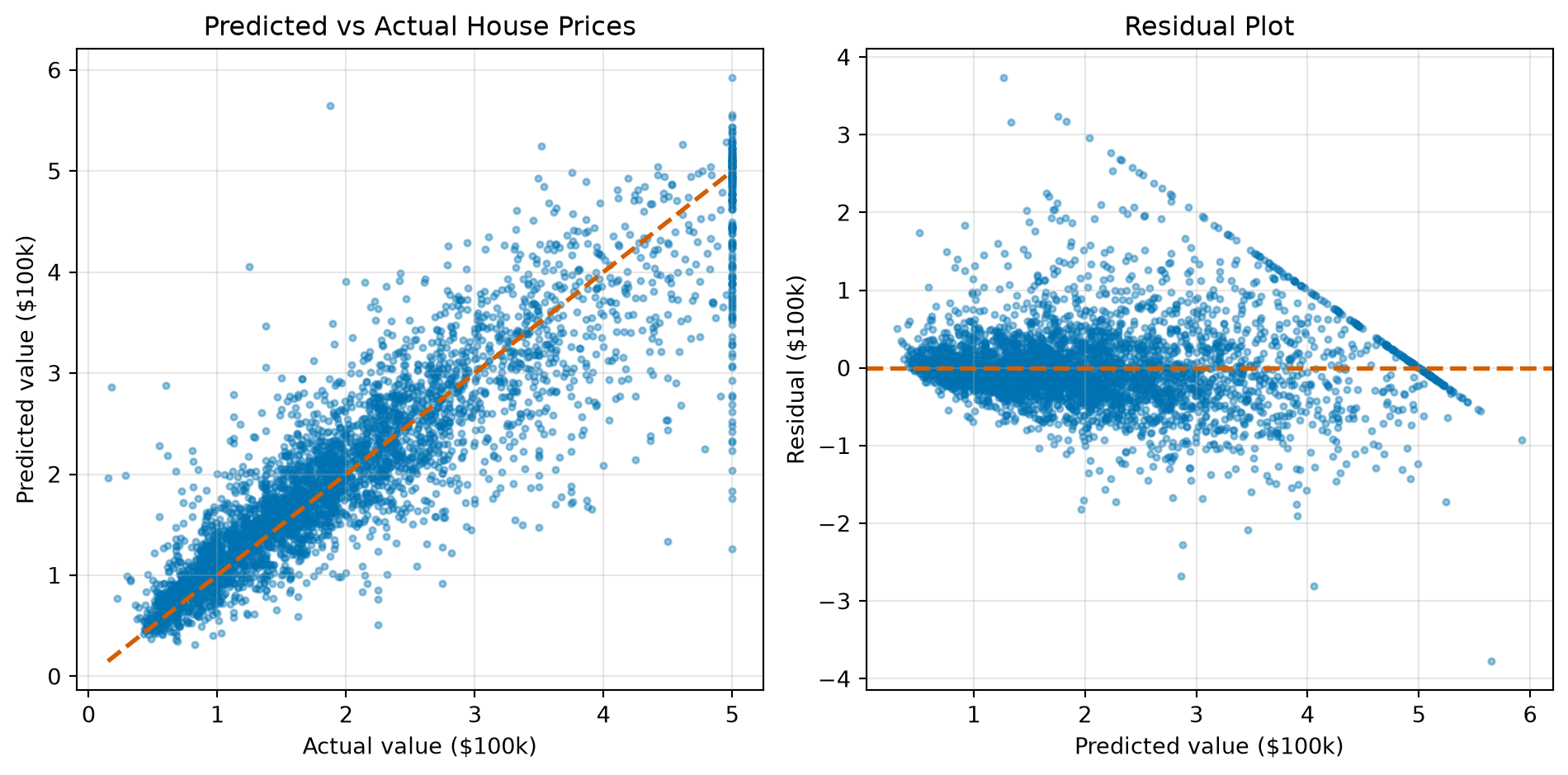

Predictions vs Actual

Code
fig, axes = plt.subplots(1, 2, figsize=(10, 5))

# Scatter plot
axes[0].scatter(y_test_h, y_pred_h, alpha=0.5)
axes[0].plot([y_test_h.min(), y_test_h.max()],
             [y_test_h.min(), y_test_h.max()], 'r--', lw=2)
axes[0].set_xlabel('Actual Values')
axes[0].set_ylabel('Predicted Values')
axes[0].set_title('Predicted vs Actual House Prices')
axes[0].grid(True)

# Residual plot
residuals = y_test_h - y_pred_h
axes[1].scatter(y_pred_h, residuals, alpha=0.5)
axes[1].axhline(y=0, color='r', linestyle='--', lw=2)
axes[1].set_xlabel('Predicted Values')
axes[1].set_ylabel('Residuals')
axes[1].set_title('Residual Plot')
axes[1].grid(True)

plt.tight_layout()
plt.show()

Hyperparameter Tuning

Grid Search for Optimal Architecture

scikit-learn provides GridSearchCV for hyperparameter tuning:

Create a model without certain hyperparameters.

# Create MLP
mlp_grid = MLPClassifier(
    max_iter=20,
    random_state=42,
    early_stopping=True,
    validation_fraction=0.1,
    n_iter_no_change=5,
    verbose=False
)

# Use subset for faster demo
X_grid = X_train_scaled[:1500]
y_grid = y_train[:1500]

Grid Search, cont.

Define the parameter grid and run the grid search.

from sklearn.model_selection import GridSearchCV

# Define parameter grid
param_grid = {
    'hidden_layer_sizes': [(50,), (100,), (50, 50)],
    'activation': ['relu'],
    'alpha': [0.0001, 0.001]
}

print("Running Grid Search...")
grid_search = GridSearchCV(mlp_grid, param_grid, cv=3, n_jobs=2, verbose=0)
grid_search.fit(X_grid, y_grid)

print(f"\nBest parameters: {grid_search.best_params_}")
print(f"Best CV score: {grid_search.best_score_:.4f}")
Running Grid Search...

Best parameters: {'activation': 'relu', 'alpha': 0.001, 'hidden_layer_sizes': (50,)}
Best CV score: 0.8740

Grid Search Results

Code
results_df = pd.DataFrame(grid_search.cv_results_)


n_configs = min(10, len(results_df))
top_results = results_df.nlargest(n_configs, 'mean_test_score')

# plt.figure(figsize=(10, 5))
# plt.barh(range(len(top_results)), top_results['mean_test_score'])
# plt.yticks(range(len(top_results)),
#            [f"Config {i+1}" for i in range(len(top_results))])
# plt.xlabel('Mean CV Score')
# plt.title('Top Hyperparameter Configurations')
# plt.grid(True, axis='x')
# plt.tight_layout()
# plt.show()

print("\nTop configurations:")
for idx, row in top_results.iterrows():
    print(f"\nConfiguration {idx + 1}:")
    for key, value in row['params'].items():
        print(f"  {key}: {value}")

print("\nMean CV Score:")
print(top_results[['mean_test_score', 'std_test_score']].head())

Top configurations:

Configuration 4:
  activation: relu
  alpha: 0.001
  hidden_layer_sizes: (50,)

Configuration 1:
  activation: relu
  alpha: 0.0001
  hidden_layer_sizes: (50,)

Configuration 2:
  activation: relu
  alpha: 0.0001
  hidden_layer_sizes: (100,)

Configuration 5:
  activation: relu
  alpha: 0.001
  hidden_layer_sizes: (100,)

Configuration 6:
  activation: relu
  alpha: 0.001
  hidden_layer_sizes: (50, 50)

Configuration 3:
  activation: relu
  alpha: 0.0001
  hidden_layer_sizes: (50, 50)

Mean CV Score:
   mean_test_score  std_test_score
3         0.874000        0.007483
0         0.872000        0.008165
1         0.870667        0.016357
4         0.869333        0.015861
5         0.869333        0.010625

Best Practices

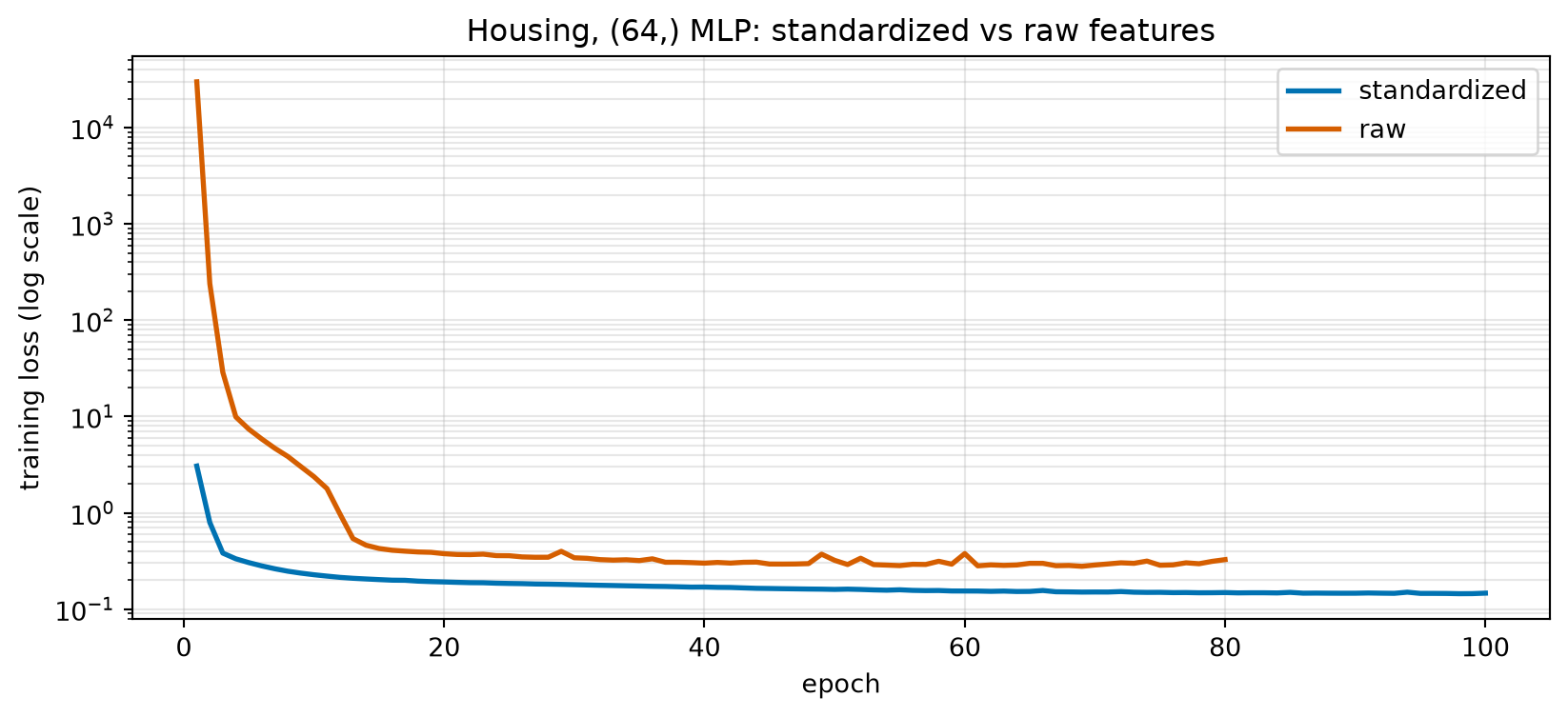

Data Preprocessing

TipAlways preprocess your data!
  1. Scale features: Use StandardScaler or normalize to [0, 1]
  2. Handle missing values: Impute or remove
  3. Encode categorical variables: One-hot encoding
  4. Use pipelines: Ensures consistent preprocessing
from sklearn.pipeline import Pipeline

pipeline = Pipeline([
    ('scaler', StandardScaler()),
    ('mlp', MLPClassifier(hidden_layer_sizes=(100,)))
])

pipeline.fit(X_train, y_train)

Architecture Selection

TipRules of thumb for architecture:
  1. Start simple: Try single hidden layer first
  2. Layer sizes: Between input and output dimensions
  3. Depth vs width:
    • More layers → learn complex patterns
    • But risk overfitting on small data
  4. Typical architectures:
    • Small data: (100,) or (50, 50)
    • Medium data: (100, 50) or (128, 64, 32)
    • Large data: Consider PyTorch

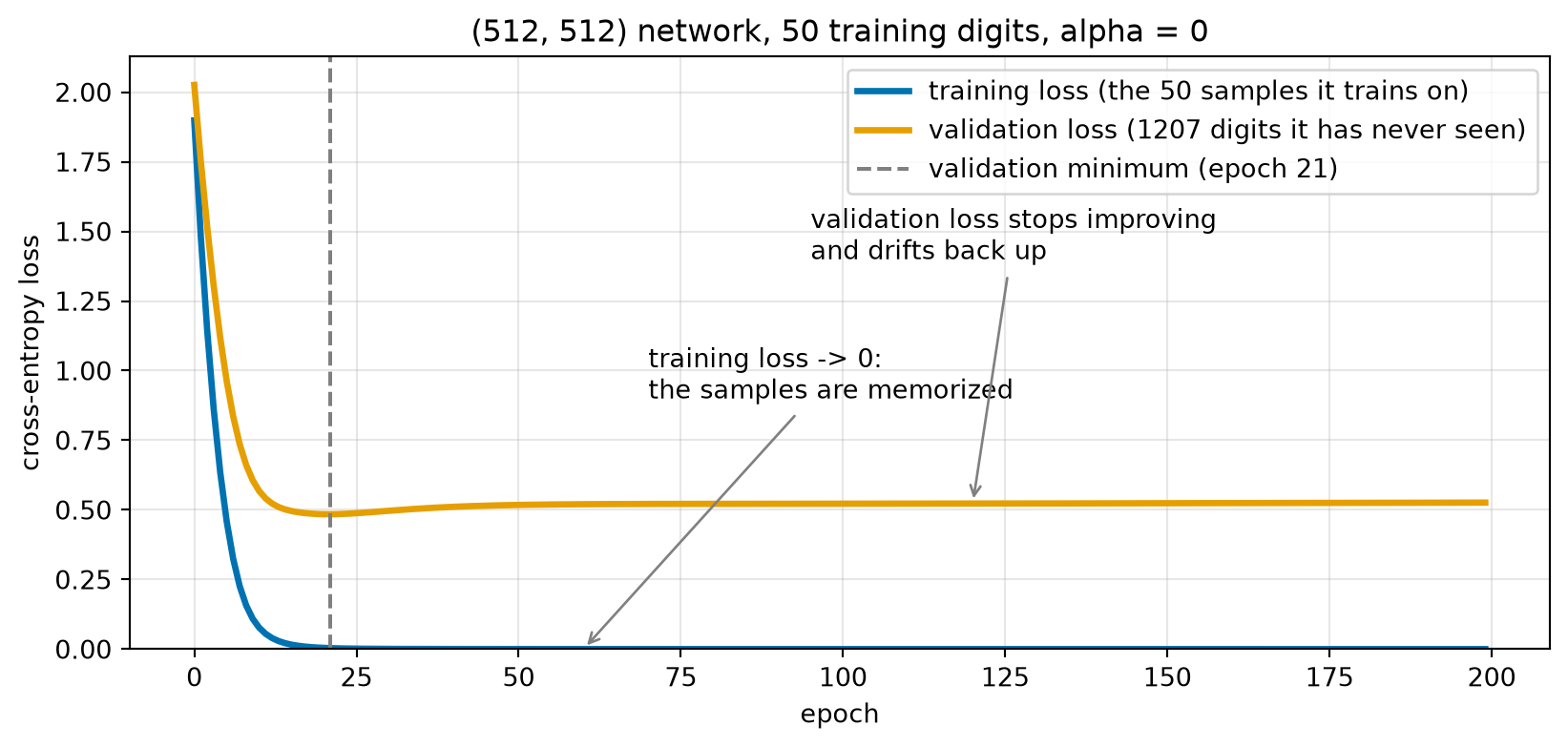

Preventing Overfitting

Three key techniques:

1. Regularization: Add L2 penalty (alpha parameter)

mlp = MLPClassifier(alpha=0.01)  # Stronger regularization

2. Early Stopping: Stop when validation performance plateaus

mlp = MLPClassifier(early_stopping=True,
                    validation_fraction=0.2,
                    n_iter_no_change=10)

3. Cross-Validation: Get robust performance estimates

from sklearn.model_selection import cross_val_score
scores = cross_val_score(mlp, X_train, y_train, cv=5)

Solver Selection

Different solvers for different scenarios:

Solver Best For Notes
'adam' Most cases Good default, adaptive learning rate
'sgd' Large datasets Classic mini-batch SGD
'lbfgs' Small datasets Faster for small data, more memory
Code
# Compare solvers
solvers = ['adam', 'sgd', 'lbfgs']
results = {}

for solver in solvers:
    mlp = MLPClassifier(
        hidden_layer_sizes=(50,),
        solver=solver,
        max_iter=50,
        random_state=42,
        verbose=False
    )
    mlp.fit(X_train_scaled[:2000], y_train[:2000])
    score = mlp.score(X_test_scaled, y_test)
    results[solver] = score
    print(f"{solver:10s}: {score:.4f}")
adam      : 0.9000
sgd       : 0.8330
lbfgs     : 0.8800

Common Issues

WarningConvergence Warnings

If you see ConvergenceWarning:

  1. Increase max_iter

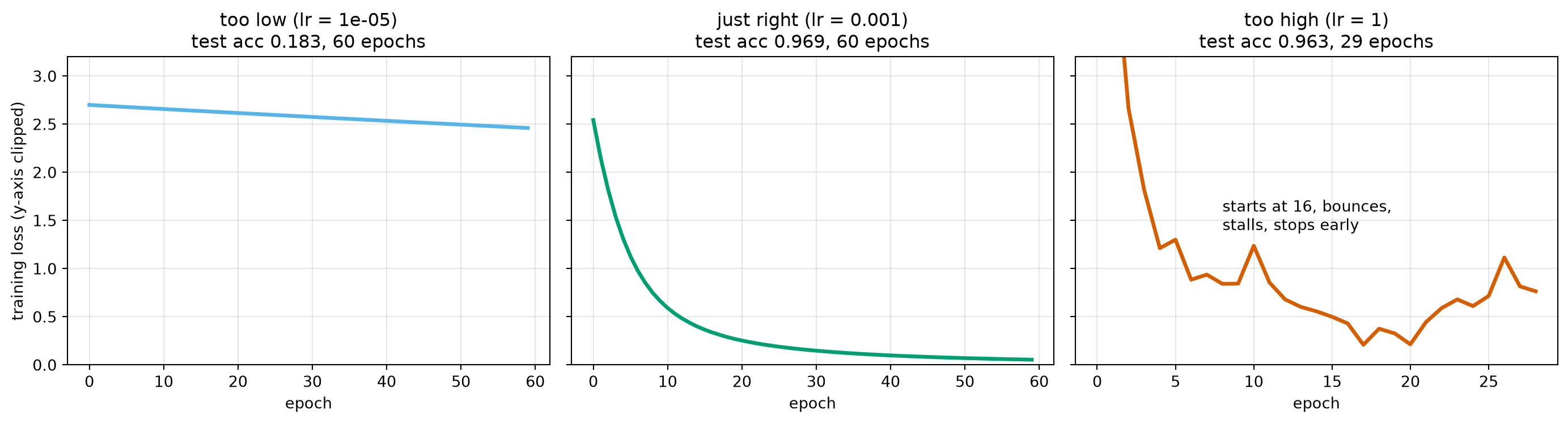

  2. Decrease learning_rate_init
  3. Enable early_stopping=True
  4. Check if data is properly scaled
WarningPoor Performance

If accuracy is low:

  1. Is data scaled/normalized?
  2. Is architecture appropriate?
  3. Is learning rate too high/low?
  4. Do you need more iterations?
  5. Is regularization too strong?

Summary

Summary

Theory (from Neural Networks I):

  • Neural networks extend linear/logistic regression with multiple layers and non-linearity
  • Gradient descent optimizes the loss; backpropagation supplies the gradients
  • Mini-batch GD balances speed and stability

Practice (today):

  • Scikit-learn’s MLPClassifier and MLPRegressor for easy implementation
  • Always preprocess/scale your data
  • Use early stopping and regularization to prevent overfitting
  • Grid search helps find optimal hyperparameters

To Dig Deeper

Other modules in the course notes:

Additional resources:

Back to top
